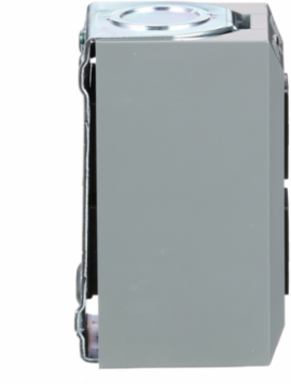

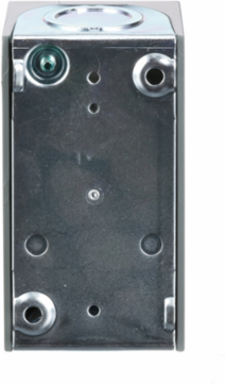

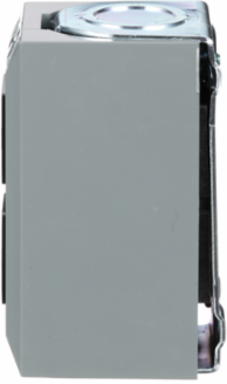

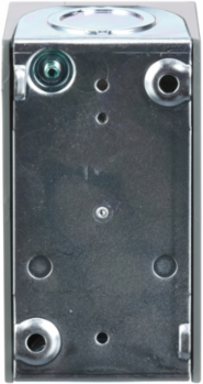

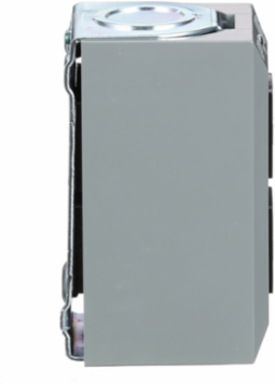

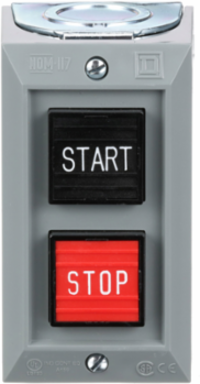

Schneider Electric 9001BG201 Harmony 9001B Control Station, 2 Push Buttons, 5A, 600V AC, NEMA 1

MPN: 9001BG201
UPC: 785901390176
PPN: SCH-9001BG201

$102.69

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

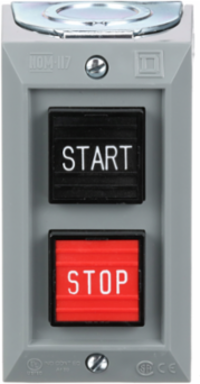

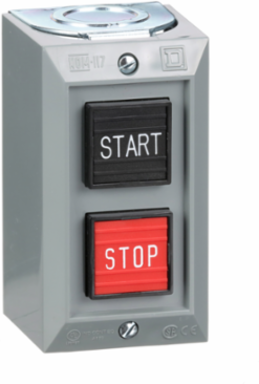

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. It has a START push button with a normally open contact and a STOP push button with a normally closed contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. This control station is UL Listed and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL listed file E42259 CCN NKCR, CE, CSA LR25490 class 3211 03
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.6 kg CO2 eq., 0.5978944458959844
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	1 kg CO2 eq., 1.4852452772301967
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	4
Function Option Id	STANDARD
Product Kit Identifier	N
Control Station Composition	2 push-buttons START-STOP
Environmental Characteristic	standard environment
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony 9001B
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	2 kg CO2 eq.
Number Of Contacts As Normally Closed Contact	1
Number Of Push Buttons	2
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; High voltage; 2020; Mexico, MX
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	49
Connections - Terminals	screw clamp terminal
Package Weight(Lbs)	272.155 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	0.1472182897422534, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0020084767474713066, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	N
Weee Scope	Out
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Standard

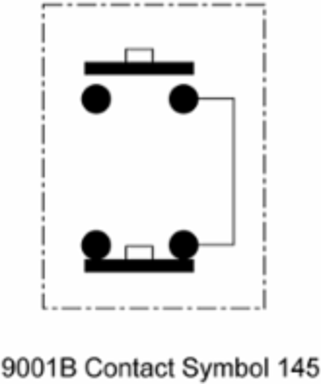

Contacts Type And Composition	1 NO + 1 NC
Device Short Name	9001BG
Operator Profile	2 projecting push-buttons
Product Or Component Type	complete control station
Returnability	Yes
Sustainable Packaging	Yes
Number Of Command Positions	2
Number Of Contacts As Normally Open Contact	1
Pep Code	ENVPEP2503027EN
Pep Verification Date	2025-03-26
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
[Ie] Rated Operational Current	5 A 600 V
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8537109170

Environment Attributes Main

Nema Degree Of Protection	NEMA 13, NEMA 1
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-03-26
Psr Version	PSR-0005-ed3-2023 06 06

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	2.232366489615906
Environmental Disclosure	ENVPEP2503027EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2503027EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
