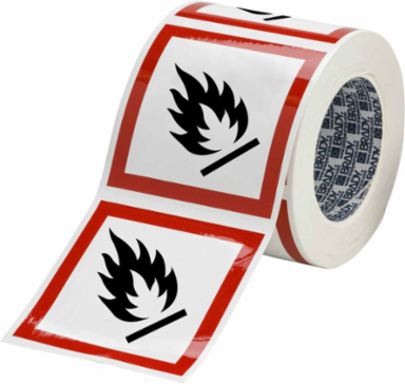

Brady 121189 GHS Flammable Picto Label, 4" H x 4" W x .035" D
Brady 121189 GHS Flammable Picto Label, 4" H x 4" W x .035" D
- MPN: 121189
- UPC: 662820546962
- PPN: BRD-121189
- UNSPSC: 55121606
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$353.75/ EA
Description
This B-7541 material is a surface printed white polyester film with a permanent, acrylic based, pressure sensitive adhesive and overlaminated with a clear polyester film.
Specifications
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
Specifications
- Brand Name
- Brady®
- CLP Pictogram
- GHS02
- Compatible Surface Types
- Low Surface Energy
- Finish
- Gloss
- Mounting Type
- Self-Adhesive
- Primary Noun, Basic Function
- Label
- PSPA Photoluminescence Class
- Not Illuminated
- Shape
- Diamond
- Brady Material Number
- B-7541
- Label Properties
- Aggressive Adhesive Labels; Permanent Adhesive Labels
- Material
- Laminated Polyester
- SAP B-Number
- B-7541
- Dimensions (Metric)
- 101.6 mm H
- Height (in/ft/yd)
- 4 in
- Maximum Service Temperature °C
- 110 °C
- Minimum Application Temperature °C
- 10 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size
- 4 in H x 4 in W
- Thickness (in/ft/yd)
- 0.0039 in
- Width (in/ft/yd)
- 4 in
Calculated Sign ShapeDiamond
ColorBlack/Red on White
Enables Industry ComplianceGlobally Harmonized System (GHS); NFPA 704; OSHA 1910.1200
Image or TextImage Only
Number of Printed Sides1
Printer and Label ApplicationsGeneral Identification; Hazardous Materials
Reflective TypeNon-Reflective
Adhesive TypePermanent Acrylic
IlluminationNot Illuminated
LaminatedLaminated
Resistance PropertiesChemical-Resistant; Humidity-Resistant; UV-Resistant
Dimensions4 in H x 4 in W
Dimensions 24 in H x 4 in W
Height (mm/cm/m)101.6 mm
Maximum Service Temperature °F230 °F
Minimum Application Temperature °F50 °F
Minimum Service Temperature °F-40 °F
Sign Size-General4 in x 4 in
Thickness (mm/cm/m)0.099 mm
Width (mm/cm/m)101.6 mm
