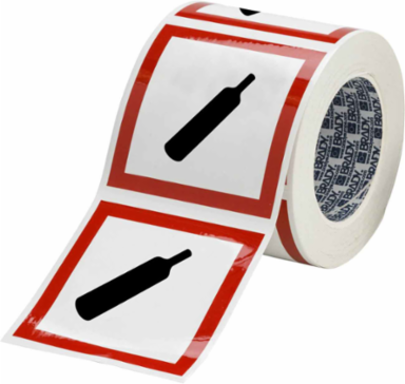

Brady 121206 GHS Gas Pressure Picto Label, 4" H x 4" W x .035" D
Brady 121206 GHS Gas Pressure Picto Label, 4" H x 4" W x .035" D
- MPN: 121206
- UPC: 662820547082
- PPN: BRD-121206
- UNSPSC: 55121606
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$353.75/ EA
Description
This B-7541 material is a surface printed white polyester film with a permanent, acrylic based, pressure sensitive adhesive and overlaminated with a clear polyester film.
Specifications
Specifications
- Brand Name
- Brady®
- CLP Pictogram
- GHS04
- Compatible Surface Types
- Low Surface Energy
- Finish
- Gloss
- Mounting Type
- Self-Adhesive
- Primary Noun, Basic Function
- Label
- PSPA Photoluminescence Class
- Not Illuminated
- Reflective Type
- Non-Reflective
- Adhesive Type
- Permanent Acrylic
- Illumination
- Not Illuminated
- Laminated
- Laminated
- Resistance Properties
- Chemical-Resistant; Humidity-Resistant; UV-Resistant
- Dimensions
- 4 in H x 4 in W
- Dimensions 2
- 4 in H x 4 in W
- Height (mm/cm/m)
- 101.6 mm
- Maximum Service Temperature °F
- 230 °F
- Minimum Application Temperature °F
- 50 °F
- Minimum Service Temperature °F
- -40 °F
- Sign Size-General
- 4 in x 4 in
- Thickness (mm/cm/m)
- 0.099 mm
- Width (mm/cm/m)
- 101.6 mm
Calculated Sign ShapeDiamond
ColorBlack/Red on White
Enables Industry ComplianceGlobally Harmonized System (GHS); NFPA 704; OSHA 1910.1200
Image or TextImage Only
Number of Printed Sides1
Printer and Label ApplicationsGeneral Identification; Hazardous Materials
Quantity per Roll250
ShapeDiamond
Brady Material NumberB-7541
Label PropertiesAggressive Adhesive Labels; Permanent Adhesive Labels
MaterialLaminated Polyester
SAP B-NumberB-7541
Dimensions (Metric)101.6 mm H
Height (in/ft/yd)4 in
Maximum Service Temperature °C110 °C
Minimum Application Temperature °C10 °C
Minimum Service Temperature °C-40 °C
Sign Size4 in H x 4 in W
Thickness (in/ft/yd)0.0039 in
Width (in/ft/yd)4 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
