Tripp Lite N785-INT-SC-SM Gigabit Singlemode Fiber to Ethernet Media Converter, 1310 nm, 20 km
- MPN: N785-INT-SC-SM
- UPC: 037332236364
- PPN: TRP-N785-INT-SC-SM
CAD
$265.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

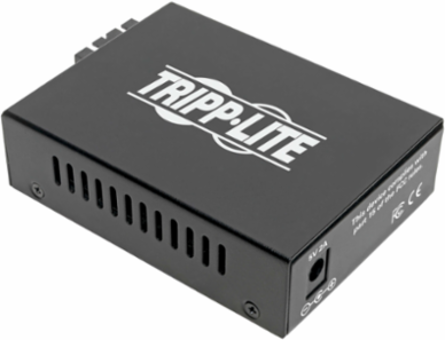

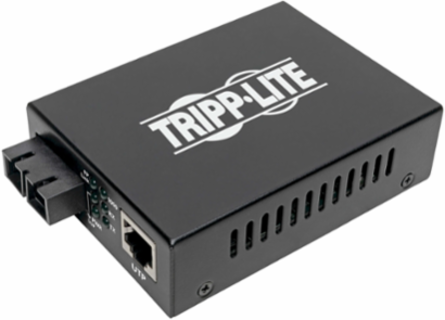

Gigabit Singlemode Fiber to Ethernet Media Converter, 1310 nm, 20 km
Features
- Extends your copper Gigabit Ethernet network past the standard 100 m limit

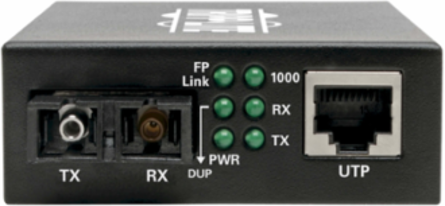

- Supports singlemode fiber optic cable with SC connectors
- RJ45 jack supports auto-MDI/MDIZ to bridge various network devices
- Supports both full- and half-duplex operation

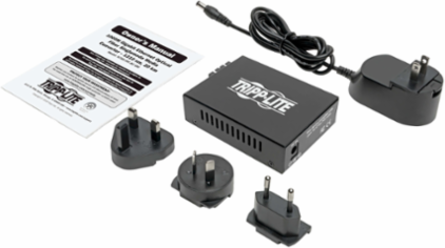

- Includes North America, U.K., Europe and Australia plug adapters
- 2-year limited warranty

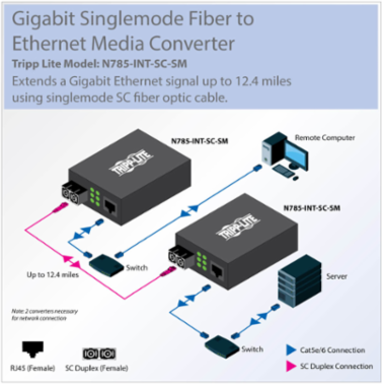

- Extend Your Gigabit Ethernet Signal up to 12.4 Miles via SC Singlemode Fiber Cable
- Supports Auto-Sensing of Network Speed and Other Advanced Functions
- Supports Singlemode Fiber Cable with SC Connectors
- Completely Plug-and-Play with No Additional Software Required for Connection
Documentation & Downloads
Specifications
Additional
- Network Speed
- 10/100/1000 Mbps
- Wavelength
- 1310 nm
- Working Mode
- Full/Half Duplex
- Current
- 0.35A
- Output Current
- 2A
- Power Connector Pin
- Positive Pin, Negative Sleeve
- Unit Dimensions
- 1 x 3.7 x 2.76 in
- Connector A
- RJ45 Female
- Operating Temperature Range
- 32 to 122 F (0 to 50 C)
- Relative Humidity
- 5% to 90% RH, Non-Condensing
- Color
- Black
Transmission Distance20 km
Mode TypeSinglemode

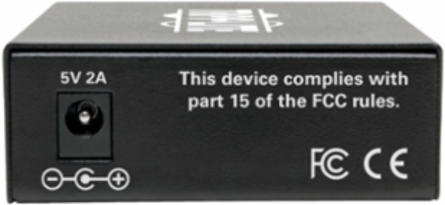

Voltage100-240V~50/60Hz
Output Voltage5V
Power Connector DimensionsOD: 5.5 x 2.1 x 7.5 mm
External Power Supply Plug TypesAS/NZS 3112 (Australia), BS 1363 (UK), CEE 7/16 Schuko (Europe), NEMA 1-15P (North America)
Unit Weight0.44 lbs (0.20 kg)
Connector BSC Duplex Female
Storage Temperature Range-4 to 158 F (-20 to 70 C)
External Power Supply CertificationsCCC, CE, FCC, GS, PSE, TUV, UL, cUL
Product Warranty Period2-year limited warranty
