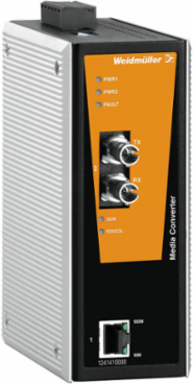

Weidmuller 1241410000 Media Converter, Fast Ethernet, 1x RJ45, 1 ST Multi-mode, IP30, 4.134 Inch
- MPN: 1241410000
- PPN: WDM-1241410000
CAD
$673.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Media converter, Fast Ethernet, Number of ports: 1x RJ45, 1 * ST Multi-mode, IP30, 0 °C...60 °C
Documentation & Downloads
Specifications
Fibre Optic 100Basefx
| Link budget multimode | 12 dB |
|---|---|
| Min. TX multi-mode | -20 dBm |
| System reserve multi-mode | -6 dBm |
| Wavelength multi-mode | 1,300 nm |
| Max. TX multi-mode | -10 dBm |
|---|---|
| Receive sensitivity multi-mode | -32 dBm |
| Typical distances multi-mode | 5 km (50/125 μm, 800 MHz*km fibre optic cable), 4 km (62.5/125 μm, 500 MHz*km fibre optic cable) |
Approvals
| Approvals | CE, CULUS, CULUSEX, DEMKOATEX, DNV GL, EAC, KOREANCERT |
|---|---|
| UL File Number Search | E230683 |
| ROHS | Conform |
|---|
Mtbf
| MTBF | 401,000 hrs |
|---|
| Database | MIL-HDBK-217F, GB 25°C |
|---|
Dimensions And Weights
| Length | 105 mm |
|---|---|
| Width | 53.6 mm |
| Height | 135 mm |
| Depth | 105 mm |
| Net weight | 765 g |
| Length (inches) | 4.134 inch |
|---|---|
| Width (inches) | 2.11 inch |
| Height (inches) | 5.315 inch |
| Depth (inches) | 4.134 inch |
Environmental Conditions
| Humidity | 5 to 95 % (non-condensing) |
|---|---|
| Operating temperature, min. | 0 °C |
| Storage temperature, min. | -40 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
Guarantee
| Time interval | 5 years |
|---|
Classifications
| ETIM 6.0 | EC001467 |
|---|---|
| eClass 9.0 | 19-17-01-14 |
| eClass 10.0 | 19-17-01-32 |
| ETIM 7.0 | EC001467 |
|---|---|
| eClass 9.1 | 19-17-01-14 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Technical Data
| Housing main material | metal |
|---|---|
| Type of mounting | DIN rail, Panel (with optional mounting kit) |
| Protection degree | IP30 |
|---|
Emc Conformity And Approvals
| EMC standards | EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz bis 1 Ghz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 3 V/m, IEC 61000-4-8, IEC 61000-4-11 |
|---|---|
| Free fall | According to IEC 60068-2-32 |
| Ship use | DNV-GL |
| Vibration | according to IEC 60068-2-6 |
| Explosive risk zone | UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T4 Gc |
|---|---|
| Security | UL508, UL60950-1, CSA C22.2 No. 60950-1, EN60950-1 |
| Shock | according to IEC 60068-2-27 |
Interfaces
| Alarm contact | 1 relay output with a current capacity of 1 A at 24 V DC |
|---|---|
| Fibre-optic ports | 100BaseFX ports (ST connector), Multimode |
| Number of ports | 1x RJ45, 1 * ST Multi-mode |
| DIP switch | 100BaseFX full-/half-duplex mode, Port surveillance |
|---|---|
| LED indicator | PWR1, PWR2, FAULT, 10/100M (TP-Port), 100M (fibre-optic port)., FDX/COL (Fibre port) |
| RJ45 ports | 10/100BaseT(X) |
Power Supply
| Connection type | 1 removable 6-pin terminal block |
|---|---|
| Overload current protection | 1.1 A |
| Supply voltage, max. | 45 V DC |
| Voltage supply | 24 V DC, 2 redundant inputs |
| Current consumption | 0.16 A at 24 V |
|---|---|
| Reverse polarity protection | Available |
| Supply voltage, min. | 12 V DC |
Technology
| Standard | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX |
|---|
