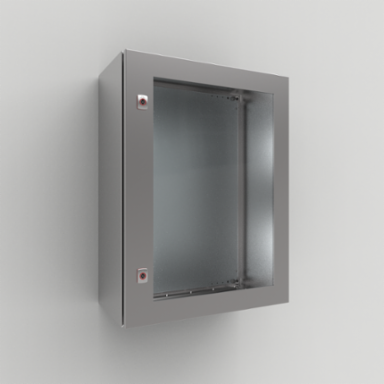

nVent Hoffman ADCS12080 Glazed Door 1200 x 800 mm Stainless Steel 304 IP55 Brushed Finish
- MPN: ADCS12080
- UPC: 783510115975
- PPN: HOF-ADCS12080
CAD
$2759.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electrical components can be viewed while the door is closed. This Glazed Doors, ADCS, ADCS12080 item measures 1200x800xmm has a material of Stainless Steel 304 color Unpainted, finish Brushed.
Features
- Description: To replace the standard door, provides a clear view of the components installed inside the enclosure. The lock(s) are interchangeable with all nVent HOFFMAN's standard lock(s)
- Material: 1.5 mm AISI 304 stainless steel, 2 mm for enclosures with a height or width of 600 mm or greater and 4 mm clear safety glass
- Finish: 400 pre-grained stainless steel
- Protection: Complies with IP55, TYPE 12, 13, IK 07.
- Pack quantity: 1 door
- The glazed door allows the electrical components to be seen while the enclosure's door is closed
- The user can monitor the status of the components without the need for opening the enclosure's door maintaining the ingress protection
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 800 |
| Window Size | 1059 x 643 |
| Enclosure Material | Mild Steel |
| Product Family | Wall Mounted |
| Finish | Brushed |
| Height (H) | 1,200 |
|---|---|
| Latch Quantity | 1 |
| Works With | IEC |
| Protection Rating | IP55 |
| Material | Stainless Steel 304 |
| Thickness (T) | 1.5 |
