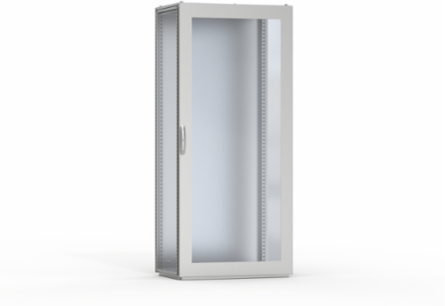

nVent Hoffman DNGS1606 Glazed Door 1600x600, Stainless Steel 304, IP55 Protection, Brushed Finish
- MPN: DNGS1606
- UPC: 783510467975
- PPN: HOF-DNGS1606
CAD
$4128.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electrical components can be viewed while the transparent stainless steel door is closed. This Stainless Steel Glazed Doors, DNGS, DNGS1606 item measures 1600x600x17mm has a material of Stainless Steel 304 color Unpainted, finish Brushed.
Features
- Description: Transparent door fitted with clear safety glass to view the inside of the enclosure. Equipped with double-bit 3 mm lock system and door frame. Allows all options of the locking programme.
- Material: Frame: 2 mm AISI 304 stainless steel plate, AISI 316L (on request). Viewing area: 4 mm clear safety glass.
- Finish: 400 pre-grained stainless steel.
- Protection: IP 55, TYPE 12, 13, IK 07.
- Mounting requirements: Use hinge kit DNMKS01 if not for replacement of standard door.
- Pack quantity: 1 piece.
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 600 |
| Window Size | 1376 x 415 |
| Enclosure Material | Mild Steel |
| Product Family | Free-Standing |
| Finish | Brushed |
| Height (H) | 1,600 |
|---|---|
| Depth (D) | 17 |
| Works With | IEC |
| Protection Rating | IP55 |
| Material | Stainless Steel 304 |
| Thickness (T) | 2 |
