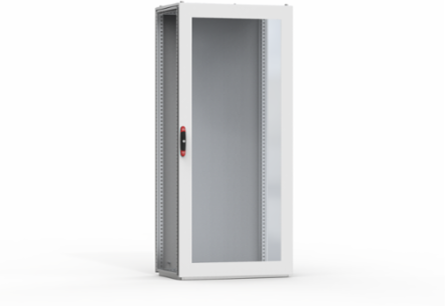

nVent Hoffman DNGE2008R5 Glazed Door 2000x800mm, Mild Steel, Powder Coated, IP54

MPN: DNGE2008R5
UPC: 783510467920
PPN: HOF-DNGE2008R5

CAD

$2285.23

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Electrical components can be viewed while the EMC door is closed. This Glazed Door (61%), DNGE, DNGE2008R5 item measures 2000x800xmm has a material of Mild Steel color Light Gray, finish Powder Coated.

Features

Description: Standard door fitted with clear safety glass to view the inside of the enclosure. Equipped with double-bit 3 mm lock system and door frame. Allows all options of the locking program. Sealing is maintained by a conductive polyurethane EMC gasket. To ensure the EMI effectiveness a mesh wire is placed behind the glass window with a clearance percentage of 61%. Use hinge kit DNMK if not for replacement of standard door.
Material: Frame: 2 mm zinc plated steel. Viewing area: 3 mm clear safety glass.
Finish: RAL 7035 structure powder coating on the outside only.
Protection: IP 54, TYPE 12, IK 07.
Mounting requirements: If no door was fitted previously use hinge kit DNMK01.
Pack quantity: 1 piece.
Coating on the outside only
If no door was fitted previously use hinge kit DNMK01
Transparent EMC door to replace the standard plain door on EMC floor standing enclosures
Clear view of the equipment installed inside the enclosure with the door closed
The user can check the status and information of the equipment inside the enclosure maintaining the ingress protection
Viewing area height (mm): 1776; viewing area width (mm): 615
