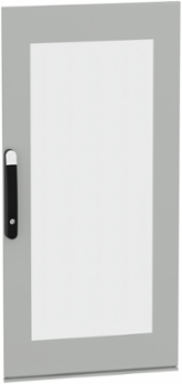

Schneider Electric NSYSFND126T Glazed door, PanelSeT SFN, for electrical enclosure H1200 W600mm, RAL7035

MPN: NSYSFND126T
PPN: SCH-NSYSFND126T

$784.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

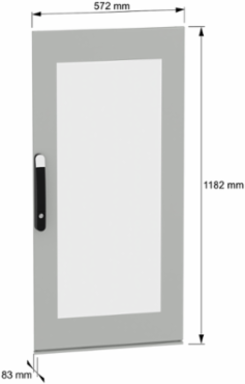

This glazed door is purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It has a nominal height and width of 1200 mm and 600 mm, respectively. It has a nominal height and width of 1800 mm and 600 mm, respectively. The door is made of steel sheet and Securit glass, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color with a black (RAL 9005) handle. It has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. The door has a four-point lock with a handle that has a 5 mm double-bar insert for security.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain

Physical Attributes

Color	Gray RAL 7035)

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 door, 1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points4 hinges, 4 locking bar catches
Material	door Securit glass, door sheet steel
Carbon Footprint Of The Distribution Phase [A4]	2.275408993, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	3.221433624, 3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-04-24
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Door Opening Side	reversible 120 °)
Energy Efficiency Optimized	False
Number Of Locks	1
Product Or Component Type	door
Range	PanelSeT
Software Version	v5.9.4
Sustainable Packaging	No
Pep Code	ENVPEP2301018EN
Pep Verification Date	2023-07-31
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal	nominal: 1200 mm
Accessory / Separate Part Category	enclosure accessory
Package Weight(Lbs)	12.000 kg
Warranty (In Months)	18
Customs Code	9403999045

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Enclosure Nominal Dimensions	- H: 1200 mm W: 600 mm, - H: 1200 mm W: 600 mm, - H: 1200 mm W: 600 mm, - H: 1200 mm W: 600 mm, - H: 1200 mm W: 600 mm, - H: 1200 mm W: 600 mm
Mounting Location	side, front
Carbon Footprint Of The End-of-life Phase [C1 To C4]	27 kg CO2 eq., 27.18167296
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	31 kg CO2 eq., 30.86506701
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2507020EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2306
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Door Type	Glass
Lock Type	lock 5 mm double bar
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	No
Surface Finish	epoxy-polyester powder
Total Lifecycle Carbon Footprint	64 kg CO2 eq.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %	97
Width Nominal	nominal: 569 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]	-8902.958

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	63.54358258
Environmental Disclosure	ENVPEP2301018EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-07-31
Psr Version	PSR-0005-ed2-2016 03 29

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2507020EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2301018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
