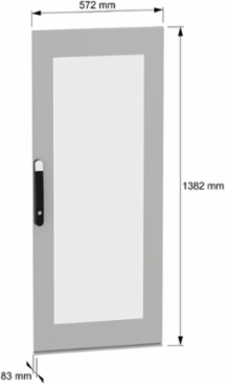

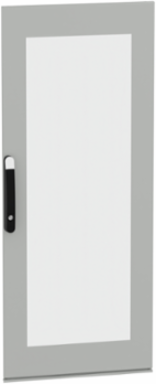

Schneider Electric NSYSFND146T Glazed door, PanelSeT SFN, for electrical enclosure H1400 W600mm
Schneider Electric NSYSFND146T Glazed door, PanelSeT SFN, for electrical enclosure H1400 W600mm
- MPN: NSYSFND146T
- PPN: SCH-NSYSFND146T
- UNSPSC: 39121302
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$765.62/ EA
Description
This glazed door is purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It has a nominal height and width of 1400 mm and 600 mm, respectively. It has a nominal height and width of 1800 mm and 1000 mm, respectively. The door is made of steel sheet and Securit glass, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color with a black (RAL 9005) handle. It has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. The door has a four-point lock with a handle that has a 5 mm double-bar insert for security.
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 door, 1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points, 4 hinges, 4 locking bar catches
- Material
- door Securit glass, door sheet steel
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 32 kg CO2 eq., 31.71195178
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 36 kg CO2 eq., 36.00924484
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option Id
- STANDARD
- Door Opening Side
- reversible 120 °)
- Package Weight Lbs
- 14.000 kg
- Product Or Component Type
- door
- Range Compatibility
- PanelSeT SFN
- Sustainable Packaging
- No
- Relationship Type
- Compatible relationship
- Pep Verification Date
- 2023-07-31
- PSR Version
- PSR-0005-ed2-2016 03 29
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
- Product Kit Identifier
- N
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 1400 mm W: 600 mm, - H: 1400 mm W: 600 mm, - H: 1400 mm W: 600 mm
Carbon Footprint Of The Distribution Phase A42.654643826, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A53.758339228, 4 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2507020EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
WD Status1 - GSC certified
Function OptionStandard
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
RangePanelSeT
ReturnabilityYes
Total Lifecycle Carbon Footprint74 kg CO2 eq.
Pep CodeENVPEP2301018EN
PCR VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit Unitunit
Product ManagerJULES BARBALONGA
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption?, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- China ROHS Regulation
- X
- Carbon Footprint
- 74.13417968
- Environmental Disclosure
- ENVPEP2301018EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2301018EN
- PCR Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2507020EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-07-31
PSR VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- door
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 55.12 in
Width22.4 in
