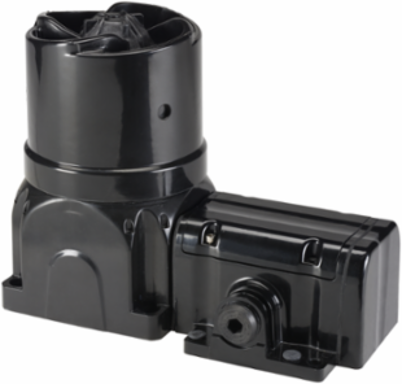

Federal Signal G-SPA-120-E-25V Global Series Amplified Speaker, Hazardous Location, UL and cUL CID2, Zone Listed, 120VAC, Ex de Surface Mount, 25 Vrms
- MPN: G-SPA-120-E-25V
- UPC: 782979244349
- PPN: FDS-G-SPA-120-E-25V
- UNSPSC: 46171602
CAD
$1849.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Global Series Amplified Speaker, Hazardous Location, UL and cUL CID2, Zone Listed, 120VAC, Ex de Surface Mount, 25 Vrms
Features
- Supports (3) operational voltages: 24 Vdc, 120 Vac, and 230 Vac
- Standard (15 W) models are compatible with 0.8, 2.8, or 25 Vrms systems
- Optional ratcheting stainless steel U-bracket trunnion mount with mounting hardware (field installation required)
- Non-metallic, Glass Reinforced Polyester (GRP) corrosion-resistant design, available in Red or Black
- Optional indicator rings are available in six colors: Black, Blue, Green, Magenta, Red, and Yellow
- Gain control
- Field customizable legend plates available
- (2) M20 entries standard on Ex d models, (3) M20 entries standard on Ex de models
- Type 4X, IP66 enclosure
- UKEX certified
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 8.23 in
- Weight
- 12.47 lbs
- Body Color
- Black
- dBa 1 Meter
- 110
- Availability
- Ships in 10 Business Days
- Operating Temp.
- -67° to +158°F (-55° to 70°C)
- Watts
- 15
- Audible Signals Color
- Black
- Audible Signals Rated Power
- Standard (15 W)
- Audible Signals Voltage
- 120VAC (Ex de configurations)
- Lead Time
- Ships in 10 Business Days
Width10.72 in
Depth5.63 in
Audio Input25
Certification ListingATEX, IECEx, UKEX, UL, cUL
dBa 10 Ft100
Mount TypeSurface
Safety Standard OptionEx de
Audible Signals Audio Input Vrms25
Audible Signals Mount TypeSurface
Audible Signals Safety StandardEx de
Environmental RatingHazardous Location
Product Life Cycle StatusCompleted
