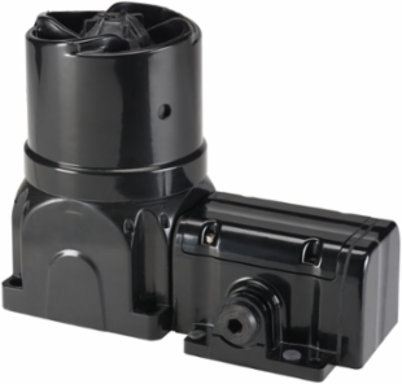

Federal Signal G-SPA-230-E Global Series Amplified Speaker, Hazardous Location, UL and cUL CID2, Zone Listed, 230VAC, Ex de Surface Mount
- MPN: G-SPA-230-E
- UPC: 782979235194
- PPN: FDS-G-SPA-230-E
- UNSPSC: 46171602
CAD
$1849.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Global Series Amplified Speaker, Hazardous Location, UL and cUL CID2, Zone Listed, 230VAC, Ex de Surface Mount
Features
- Supports (3) operational voltages: 24 Vdc, 120 Vac, and 230 Vac
- Standard (15 W) models are compatible with 0.8, 2.8, or 25 Vrms systems
- Optional ratcheting stainless steel U-bracket trunnion mount with mounting hardware (field installation required)
- Non-metallic, Glass Reinforced Polyester (GRP) corrosion-resistant design, available in Red or Black
- Optional indicator rings are available in six colors: Black, Blue, Green, Magenta, Red, and Yellow
- Gain control
- Field customizable legend plates available
- (2) M20 entries standard on Ex d models, (3) M20 entries standard on Ex de models
- Type 4X, IP66 enclosure
- UKEX certified
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 8.23 in
- Weight
- 12.47 lbs
- Body Color
- Black
- dBa 1 Meter
- 110
- Availability
- Ships in 10 Business Days
- Operating Temp.
- -67° to +158°F (-55° to 70°C)
- Safety Standard Option
- Ex de
- Audible Signals Audio Input Vrms
- 0.8/2.8
- Audible Signals Mount Type
- Surface
- Audible Signals Safety Standard
- Ex de
- Environmental Rating
- Hazardous Location
- Product Life Cycle Status
- Completed
Width10.72 in
Depth5.63 in
Audio Input0.8/2.8
Certification ListingATEX, IECEx, UKEX, UL, cUL
dBa 10 Ft100
Mount TypeSurface
Operating Voltage240 Vac
Watts15
Audible Signals ColorBlack
Audible Signals Rated PowerStandard (15 W)
Audible Signals Voltage240VAC (Ex de configurations)
Lead TimeShips in 10 Business Days
