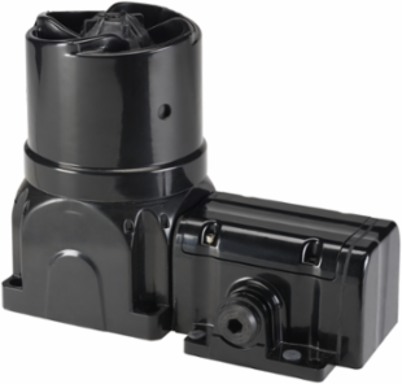

Federal Signal G-SPA-120-E Global Series Amplified Speaker, Hazardous Location, UL and cUL CID2, Zone Listed, 120VAC, Ex de Surface Mount
Federal Signal G-SPA-120-E Global Series Amplified Speaker, Hazardous Location, UL and cUL CID2, Zone Listed, 120VAC, Ex de Surface Mount
- MPN: G-SPA-120-E
- UPC: 782979235187
- PPN: FDS-G-SPA-120-E
- UNSPSC: 46171602
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1849.80/ EA
Description
Federal Signal Global Series® Amplified Speakers are designed for rugged industrial public address and general alarm applications. Standard (15 W) models are certified for gas Group IIC environments, and High Power (30 W) models are certified for gas group IIB+H2 environments. The Global Series Amplified Speakers are available with explosion-proof Ex d surface, Ex d trunnion, or Ex de surface mounts. Ex d surface and trunnion mount models come standard with (2) M20 entries. The increased safety Ex de surface mount models include a separate terminal chamber for quick field termination or pass-through wiring and include (3) M20 entries in a standard configuration.Global Series Amplified Speakers are capable of amplifying audio-level signals from either 0.8, 2.8, 10, or 25 Vrms systems and reproducing it at 15- or 30-watt levels. Global Series Amplified Speakers work perfectly with ECHO Intercom systems or with any application requiring audio amplification where ATEX, IECEx, Cass 1, Zone 1 or Class 1 Div 2 approval is required or desired.Standard (15 W) Global Series Amplified Speakers can be combined with all other Global Series audible and visual products in several custom configurations. Custom configurations can be ordered directly from the factory. Optional coupling kits, which allow limited field fixturing, are available. (High Power [30 W] Amplified Speaker integration with custom configurations is coming soon.
Features
- Supports (3) operational voltages: 24 Vdc, 120 Vac, and 230 Vac
- Standard (15 W) models are compatible with 0.8, 2.8, or 25 Vrms systems
- High Power (30 W) models are compatible with 0.8, 2.8, 10, and 25 Vrms systems
- Optional ratcheting stainless steel U-bracket trunnion mount with mounting hardware (field installation required)
- Non-metallic corrosion-resistant design, available in Red or Black
- Optional indicator rings are available in six colors: Black, Blue, Green, Magenta, Red, and Yellow
- Gain control
- Field customizable legend plates available
- (2) M20 entries standard on Ex d models, (3) M20 entries standard on Ex de models
- Type 4X, IP66 enclosure
Specifications
Specifications
- Country of Origin
- United States
- Audio Input
- 0.8/2.8
- Certification Listing
- ATEX, IECEx, UKEX, UL, cUL
- dBa 10 Ft
- 100
- Mount Type
- Surface
- Safety Standard Option
- Ex de
- Audible Signals Audio Input Vrms
- 0.8/2.8
- Audible Signals Mount Type
- Surface
- Audible Signals Safety Standard
- Ex de
- Depth
- 8.23 in, 20.9042 cm
- Width
- 10.72 in, 27.2288 cm
Weight12.47 lbs
Body ColorBlack
dBa 1 Meter110
AvailabilityShips in 10 Business days
Operating Temp.-67° to +158°F (-55° to 70°C)
Watts15
Audible Signals ColorBlack
Audible Signals Rated PowerStandard (15 W)
Audible Signals Voltage120VAC (Ex de configurations)
Height8.23 in, 20.9042 cm
