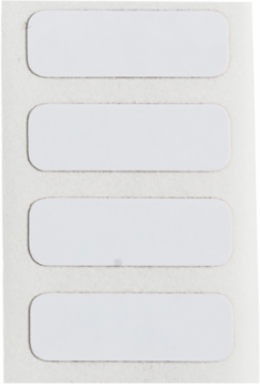

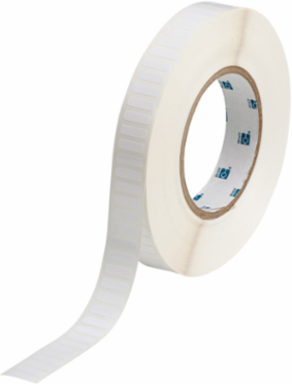

Brady THT-47-423-10 Glossy Polyester Labels, 0.2" H x 0.65" W, 10000 Labels, White
Brady THT-47-423-10 Glossy Polyester Labels, 0.2" H x 0.65" W, 10000 Labels, White
- MPN: THT-47-423-10
- UPC: 662820305125
- PPN: BRD-THT-47-423-10
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$155.56/ EA
Description
Permanent Polyester (B-423) is ideal for electronic PCB and component identification, bar code labels, rating plates and solar panel identification.
Features
- Glossy white finish with permanent acrylic is thermal transfer printable
- UL approved;CSA accepted
- Meets requirements of a halogen-free material per DIN VDE 0472 part 815
- Service temperature of -94 to 230° F (-70 to 110° C)
Specifications
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
Specifications
- Applications
- Circuit Board Labeling; Component and Equipment Labeling; General Identification; Inventory and Inspection Labeling
- Brand Name
- Brady®
- Color
- White
- Corner Type
- Rounded Corners
- Enables Industry Compliance
- ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; Halogen Free (DIN VDE 0472 part 815); UL Recognized
- For Use with Printer
- BBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- General Identification; Inspection Repair; Rating & Name Plates
- Printer Compatibility (Print)
- BBP12; i7100; i5100
- Quantity per Row
- 1
- Ribbon Series
- R6000HF
- Suggested Ribbon Series
- R4900; R6000 Halogen Free; R6200
- Total Quantity
- 10000
- Adhesive Type
- Permanent Acrylic
- Brady Material Number
- B-423
- Label Properties
- Aggressive Adhesive Labels; Harsh Environment Labels; Heat Resistant Labels; Permanent Adhesive Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Average Outdoor Durability
- 1 Year
- Dimensions
- 0.2 in H x 0.65 in W
- Dimensions 2
- 0.2 in H x 0.65 in W
- Height (mm/cm/m)
- 5.08 mm
- Maximum Service Temperature °C
- 110 °C
- Minimum Service Temperature °C
- -70 °C
- Printable Area Dimensions (Metric)
- 5.08 mm H x 16.51 mm W
- Printable Area Width (mm/cm/m)
- 16.51 mm
- Size - Width (mm)
- 16.51 mm
- Thickness (mm/cm/m)
- 0.076 mm
- Vertical Repeat (mm)
- 7.62 mm
- Width (in/ft/yd)
- 0.65 in
Board ApplicationThrough Hole - Top
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
DiagramIcon 3 (triangle)
FinishGloss
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Roll10000
Recommended RibbonIP-R6006; R6006
ShapeRectangle
Total Qty per Pack10000 Label(s) / Roll
Trade NameWorkHorse
After ProcessYes, this material will work with this application
Indoor or Outdoor UseOutdoor Use
MaterialPolyester
SAP B-NumberB-423
Core Diameter (mm/cm/m)76.20 mm
Dimensions (Metric)16.51 mm W x 5.08 mm H
Height (in/ft/yd)0.2 in
Label/Tape Size (in/ft/yd)0.2 in H x 0.65 in W
Maximum Service Temperature °F230 °F
Minimum Service Temperature °F-94 °F
Printable Area Height (mm/cm/m)5.08 mm
Sign Size-General0.2 in x 0.65 in
Thickness (in/ft/yd)0.003 in
Vertical Repeat0.3 in
Web Width (mm/cm/m)21.59 mm
Width (mm/cm/m)16.51 mm
