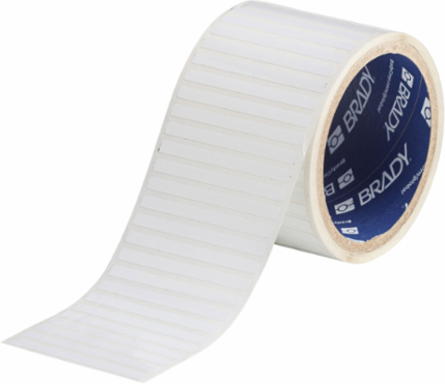

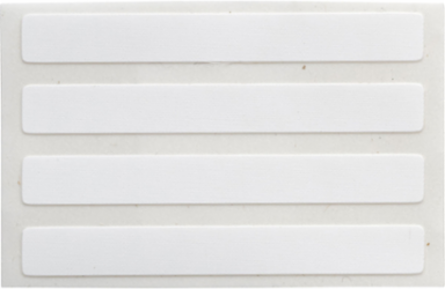

Brady THT-142-423-2.5 Glossy Polyester Labels, 0.2" H x 2.5" W, Roll of 2500 Labels, White
- MPN: THT-142-423-2.5
- UPC: 662820623748
- PPN: BRD-THT-142-423-2.5
- UNSPSC: 55121612
CAD
$116.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Permanent Polyester (B-423) is ideal for electronic PCB and component identification, bar code labels, rating plates and solar panel identification.
Features
- Glossy white finish with permanent acrylic is thermal transfer printable
- UL approved;CSA accepted
- Meets requirements of a halogen-free material per DIN VDE 0472 part 815
- Service temperature of -94 to 230° F (-70 to 110° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling; Component and Equipment Labeling; General Identification; Laboratory Labeling
- Brand Name
- Brady®
- Color
- White
- Diagram
- Icon 3 (triangle)
- Finish
- Gloss
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer Compatibility
- BBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
- Quantity per Roll
- 2500
- Recommended Ribbon
- IP-R6002; R6002
- Shape
- Rectangle
- Total Qty per Pack
- 2500 Label(s) / Roll
- Trade Name
- WorkHorse
- Adhesive Type
- Permanent Acrylic
- Brady Material Number
- B-423
- Label Properties
- Aggressive Adhesive Labels; Harsh Environment Labels; Heat Resistant Labels; Permanent Adhesive Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Dimensions (Metric)
- 63.50 mm W x 5.08 mm H
- Height (in/ft/yd)
- 0.2 in
- Label/Tape Size (in/ft/yd)
- 0.2 in H x 2.5 in W
- Maximum Service Temperature °F
- 230 °F
- Minimum Service Temperature °F
- -94 °F
- Printable Area Height (mm/cm/m)
- 5.08 mm
- Sign Size-General
- 0.2 in x 2.5 in
- Thickness (in/ft/yd)
- 0.003 in
- Vertical Repeat
- 0.3 in
- Web Width (mm/cm/m)
- 68.58 mm
- Width (mm/cm/m)
- 63.5 mm
Board ApplicationThrough Hole - Top
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
Enables Industry ComplianceASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; Halogen Free (DIN VDE 0472 part 815); UL Recognized
For Use with PrinterBBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsGeneral Identification; Inspection Repair; Rating & Name Plates
Printer Compatibility (Print)BBP12; i7100; i5100
Quantity per Row1
Ribbon SeriesR6000HF
Suggested Ribbon SeriesR4900; R6000 Halogen Free; R6200
Total Quantity2500
Adhesive (Y/N)Yes
After ProcessYes, this material will work with this application
Indoor or Outdoor UseOutdoor Use
MaterialPolyester
SAP B-NumberB-423
Dimensions0.2 in H x 2.5 in W
Dimensions 20.2 in H x 2.5 in W
Height (mm/cm/m)5.08 mm
Maximum Service Temperature °C110 °C
Minimum Service Temperature °C-70 °C
Printable Area Dimensions (Metric)5.08 mm H x 63.5 mm W
Printable Area Width (mm/cm/m)63.5 mm
Size - Width (mm)63.50 mm
Thickness (mm/cm/m)0.076 mm
Vertical Repeat (mm)7.62 mm
Width (in/ft/yd)2.5 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
