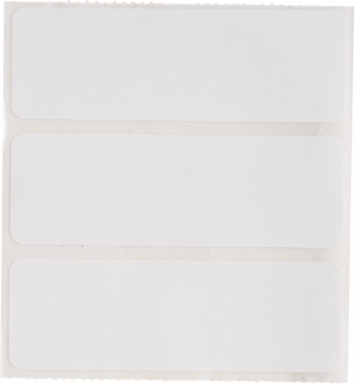

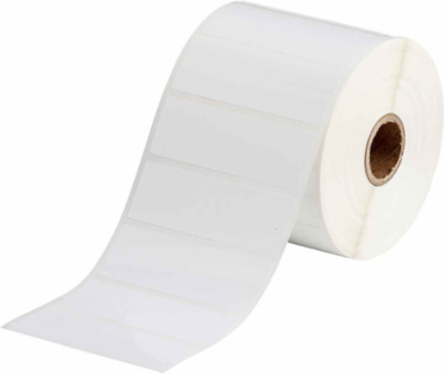

Brady THT-18-423-1.5-SC Glossy Polyester Labels, 1" H x 3" W, Roll of 1500 Labels, White
- MPN: THT-18-423-1.5-SC
- UPC: 662820920861
- PPN: BRD-THT-18-423-1.5-SC
- UNSPSC: 55121612
CAD
$270.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

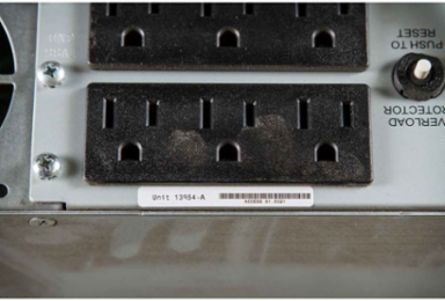

Permanent Polyester (B-423) is ideal for electronic PCB and component identification, bar code labels, rating plates and solar panel identification.
Features
- Glossy white finish with permanent acrylic is thermal transfer printable
- UL approved;CSA accepted
- Meets requirements of a halogen-free material per DIN VDE 0472 part 815
- Service temperature of -94 to 230° F (-70 to 110° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling; General Identification
- Bulk Part
- Not a Bulk Part
- Compatible Surface Types
- High Surface Energy
- Finish
- Gloss
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Quantity per Roll
- 1500
- Recommended Ribbon
- R6013
- Suggested Ribbon Series
- R4900; R6000 Halogen Free; R6200
- Trade Name
- WorkHorse®
- Brady Material Number
- B-423
- Label Properties
- Aggressive Adhesive Labels; Harsh Environment Labels; Heat Resistant Labels; Permanent Adhesive Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Dimensions
- 1 in H x 3 in W
- Dimensions 2
- 1 in H x 3 in W
- Height (mm/cm/m)
- 25.4 mm
- Maximum Service Temperature °C
- 110 °C
- Minimum Service Temperature °C
- -70 °C
- Printable Area Dimensions (Metric)
- 25.4 mm H x 76.2 mm W
- Printable Area Width (mm/cm/m)
- 76.2 mm
- Thickness (in/ft/yd)
- 0.003 in
- Vertical Repeat
- 1.125 in
- Width (mm/cm/m)
- 76.2 mm
Brand NameBrady®
ColorWhite
Enables Industry ComplianceASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; Halogen Free (DIN VDE 0472 part 815); UL Recognized
For Use with PrinterBBP®11 Label Printer; BBP®12 Label Printer; THT 1" Core Printer
Primary Noun, Basic FunctionLabel

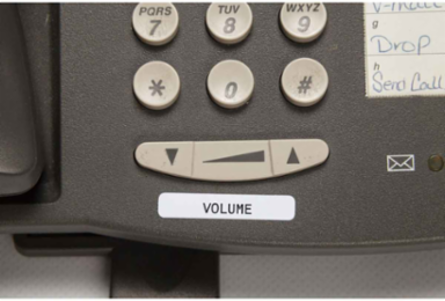

Printer and Label ApplicationsGeneral Identification; Inspection Repair; Rating & Name Plates
Quantity per Row1
ShapeRectangle
Total Quantity1500
Adhesive TypePermanent Acrylic
Indoor or Outdoor UseOutdoor Use
MaterialPolyester
SAP B-NumberB-423
Dimensions (Metric)25.4 mm H
Height (in/ft/yd)1 in
Label/Tape Size (in/ft/yd)1 in H x 3 in W
Maximum Service Temperature °F230 °F
Minimum Service Temperature °F-94 °F
Printable Area Height (mm/cm/m)25.4 mm
Sign Size-General1 in x 3 in
Thickness (mm/cm/m)0.076 mm
Width (in/ft/yd)3 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
