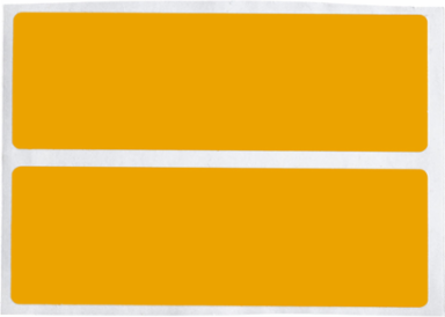

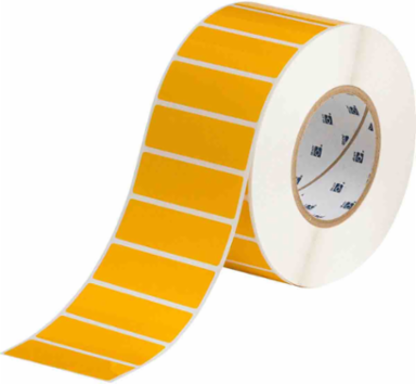

Brady THT-18-423-3-YL Glossy Polyester Labels, 1" H x 3" W, Roll of 3000 Labels, Yellow
- MPN: THT-18-423-3-YL
- UPC: 754473844967
- PPN: BRD-THT-18-423-3-YL
- UNSPSC: 55121612
CAD
$377.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This B-423Y material is ideal for use in electronic PCB and component identification, bar code label and rating plates.
Features
- Glossy yellow finish with permanent acrylic is thermal transfer printable
- UL recognized
- Service temperature of -94 to 230° F (-70 to 110° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications

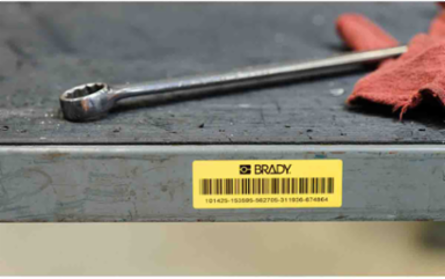

- Asset Tracking; Circuit Board Labeling; General Identification; Laboratory Labeling
- Brand Name
- Brady®
- Color
- Yellow
- Diagram
- Icon 26 (hexagon)
- For Use with Printer
- BBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- General Identification; Inspection Repair
- Printer Compatibility (Print)
- BBP12; i7100; i5100
- Quantity per Row
- 1
- Ribbon Series
- R6000HF
- Suggested Ribbon Series
- R4900; R6000 Halogen Free; R6200
- Total Quantity
- 3000
- Adhesive (Y/N)
- Yes
- After Process
- Yes, this material will work with this application
- Label Properties
- Aggressive Adhesive Labels; Harsh Environment Labels; Heat Resistant Labels; Permanent Adhesive Labels
- SAP B-Number
- B-423Y
- Dimensions
- 1 in H x 3 in W
- Dimensions 2
- 1 in H x 3 in W
- Height (mm/cm/m)
- 25.40 mm
- Maximum Service Temperature °C
- 110 °C
- Minimum Service Temperature °C
- -70 °C
- Sign Size-General
- 1 in x 3 in
- Thickness (in/ft/yd)
- 0.0034 in
- Vertical Repeat
- 1.125 in
- Web Width (mm/cm/m)
- 81.28 mm
- Width (mm/cm/m)
- 76.2 mm
Board ApplicationThrough Hole - Top
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
FinishGloss
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Roll3000
Recommended RibbonIP-R6002; R6002
ShapeRectangle
Total Qty per Pack3000 Label(s) / Roll
Trade NameWorkHorse
Adhesive TypePermanent Acrylic
Brady Material NumberB-423Y
MaterialPolyester
Core Diameter (mm/cm/m)76.20 mm
Dimensions (Metric)76.20 mm W x 25.40 mm H
Height (in/ft/yd)1 in
Label/Tape Size (in/ft/yd)1 in H x 3 in W
Maximum Service Temperature °F230 °F
Minimum Service Temperature °F-94 °F
Size - Width (mm)76.20 mm
Thickness (mm/cm/m)0.086 mm
Vertical Repeat (mm)28.58 mm
Width (in/ft/yd)3 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
