Killark GLX-300 Viewing Lens Cover, 3 Inch Diameter, Class I, II, III, Cast Aluminum, IP66
- MPN: GLX-300
- UPC: 783936213170
- PPN: HBL-GLX-300
- UNSPSC: 39121314
CAD
$747.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

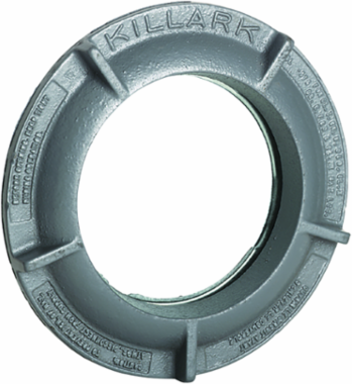

GLX Series, 3" Dia. Viewing, Class I, II, III, CDEFG, Cast Aluminum,Type 4 IP66, Fine Threaded Round Glass Lens Cover
Features
- Threaded glass lens screw covers provide easy access to interior.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Glass lens made of tempered soda lime.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard for a Type 4X rating.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of covers.
- Clear cover lens for viewing.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Special Features
- Clear cover lens for viewing.
- Nema Rating
- 3, 4, 4X
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514 / E83696
- Series
- GR Enclosures Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Width5.630 in
ApplicationUse GLX Series lens on: all DB boxes and all XJB boxes (except 16" x 48" and 24" x 24").
NEMA Rating3, 4, 4X
TypeLens Cover
ARRA CompliantContact Manufacturer
Description - InvoiceGLX SERIES LENS COVER
Harmonization Code7616995190
Lead Time10 wk
Order Multiple1 EA
Sub Class CodeD25D252
Gross Weight with Packaging1
MaterialCopper-free aluminum
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936213170
NAICS Code3359326315
