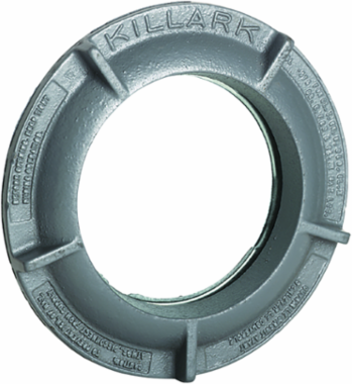

Killark GL-537 GL Series 5-3/8 Inch Viewing Lens Cover, Class I, II, III, Cast Aluminum, IP66
Killark GL-537 GL Series 5-3/8 Inch Viewing Lens Cover, Class I, II, III, Cast Aluminum, IP66
- MPN: GL-537
- UPC: 783936213064
- PPN: HBL-GL-537
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$904.52/ EA
Description
GL Series, 5-3/8" Dia. Viewing, Class I, II, III, BCDEFG, Cast Aluminum,Type 4 IP66, Threaded Round Glass Lens Cover
Features
- Threaded glass lens screw covers provide easy access to interior.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Glass lens made of tempered soda lime.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard for a Type 4X rating.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of covers.
- Clear cover lens for viewing.
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Application
- Use GL Series lens on: all EXB boxes, XJB 16" x 48", and XJB 24" x 24".
- Length
- 8.375 in
- Size
- 8.375 in x 5.875 in x 7 in
- Type
- Lens Cover
- Cover Type
- Threaded
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 4" LENS COVER
- Harmonization Code
- 7616995190
- Lead Time
- 10 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D252
- Gross Weight with Packaging
- 9.7
- Material
- Copper-free aluminum
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Dimensions8.375 in x 5.875 in x 7 in
Height7 in
ColorGray
NEMA Rating3, 4, 4X
Special FeaturesClear cover lens for viewing.
Width5.875 in
Nema Rating3, 4, 4X
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514 / E83696
SeriesGR Enclosures Series
Carton - SCC-14 Next Lower Level Sub Pack00783936213064
Certifications
- EU RoHS Indicator
- Contact Manufacturer
