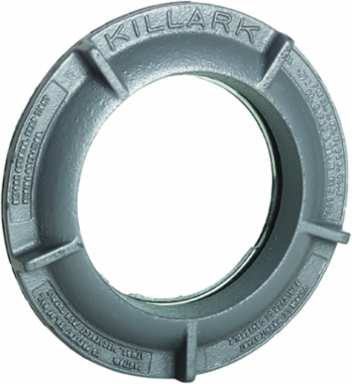

Killark GL-275 Hazardous Location Lens Cover, 2-3/4 Inch Dia., Cast Aluminum, Type 4 IP66
- MPN: GL-275
- UPC: 783936213002
- PPN: HBL-GL-275
- UNSPSC: 39121314
CAD
$487.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
GL Series, 2-3/4" Dia. Viewing, Class I, II, III, BCDEFG, Cast Aluminum,Type 4 IP66, Threaded Round Glass Lens Cover
Features
- Threaded glass lens screw covers provide easy access to interior.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Glass lens made of tempered soda lime.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard for a Type 4X rating.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of covers.
- Clear cover lens for viewing.
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Application
- Use GL Series lens on: all EXB boxes, XJB 16" x 48", and XJB 24" x 24".
- Length
- 5.375 in
- Size
- 5.375 in x 5 in x 3 in
- Type
- Lens Cover
- Cover Type
- Threaded
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 2"/4" LENS COVER
- Harmonization Code
- 7616995190
- Lead Time
- 10 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D252
- Gross Weight with Packaging
- 1.13
- Material
- Copper-free aluminum
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936213002
- Item Package Type
- 1 lb. Packing Fiber
- NAICS Code
- 3359326103
Dimensions5.375 in x 5 in x 3 in
Height3 in
ColorGray
NEMA Rating3, 4, 4X
Special FeaturesClear cover lens for viewing.
Width5 in
Nema Rating3, 4, 4X
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514 / E83696
SeriesGR Enclosures Series
BOX SIZE3.000x5.375x5.000 (in)
Carton - Total Units1 EA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
