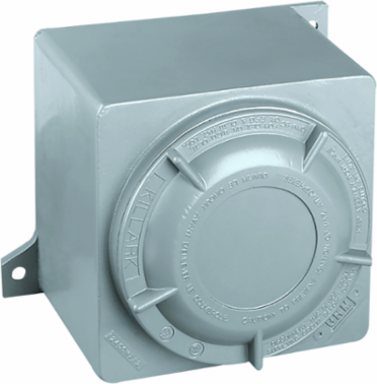

Killark GRH GR Series Enclosure 15.375 Inch x 13.875 Inch x 9.875 Inch, NEMA 3, 4, 4X, Cast Aluminum
- MPN: GRH
- UPC: 783936230030
- PPN: HBL-GRH
- UNSPSC: 39121314
CAD
$2099.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
GR Series, 9.5 X 10.5 X 5, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Screw Cover Enclosure
Features
- Compact rectangular enclosures with threaded screw covers provide easy access to interior.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Available with a flat blank or dome covers.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4X rating.
- Cast mounting lugs are standard on all boxes.
- Internal ground screw supplied on all boxes.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of box and cover.
- Mounting pans are available.
- Conduit and device openings factory or field installed.
- Compact square or rectangular enclosures with threaded screw type covers provide easy access to interior. Can be shipped in component parts and still maintain third party UL-CSA-FM approvals. Enclosure has blank cover. Cast mounting lugs are standard on a
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Application
- Hazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica
- Length
- 15.375 in
- Size
- 15.375 in x 13.875 in x 9.875 in
- Type
- Enclosure & Blank Cover
- Engineering Drawing 1 Display Text
- GRH Engineering Drawing
- Nema Rating
- 3, 4, 4X
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514 / E83696
- Series
- GR Enclosures Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions15.375 in x 13.875 in x 9.875 in
Height9.875 in
ColorGray
NEMA Rating3, 4, 4X
Special FeaturesCompact square or rectangular enclosures with threaded screw type covers provide easy access to interior. Can be shipped in component parts and still maintain third party UL-CSA-FM approvals. Enclosure has blank cover. Cast mounting lugs are standard on a
Width13.875 in
Cover TypeThreaded
ARRA CompliantContact Manufacturer
Description - InvoiceCLI 12X11X7-5/8 JUNCTION BOX
Harmonization Code7616995190
Lead Time20 wk
Order Multiple1 EA
Sub Class CodeD25D252
Gross Weight with Packaging40.52
MaterialCopper-free aluminum
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936230030
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
