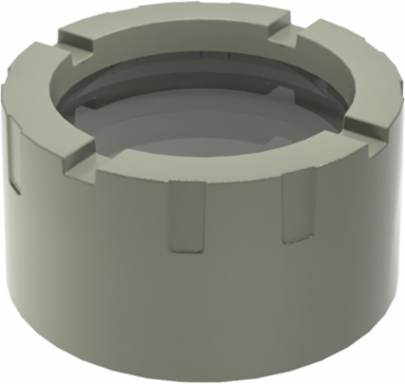

Killark HKXGL HKBX Series Flat Lens Enclosure 3-5/8 Inch Threaded, Die Cast Aluminum, Type 4X
- MPN: HKXGL
- UPC: 783936181837
- PPN: HBL-HKXGL
CAD
$272.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HKBX Series, Flat Lens Cover 3-5/8" Viewing Class I, II, III, BCDEFG, UL/CSA, Die Cast Aluminum, Type 4, Instrument Enclosure
Features
- Threaded glass lens screw covers provide easy access to interior.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Glass lens made of tempered sode lime.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4X rating.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of covers.
- Covers have shrouded tamper resistant set screws as standard.
- Small compact, 4-1/4 ID. round body enclosure with a 2-3/4" depth. Option of 2 threaded lens covers and 2 blank threaded cover in 2 depths. The HBX series is for use in locations that are hazardous, corrosive, wet, hose down, dust, dirty, under both sever hot and cold ambient conditions. They are UL / CSA certified for Class I Groups BCD, Class I Zone 1 & 2 IIB+H2, Class II Groups EFG, Class III, Type 4 & 4X. Also, ATEX, IEC Ex, Ex db IIC, Ex e IIC, Ex tb IIIC T4…T3 IP66 with suffix “C”. Supplied with (3) ¾”NPT conduit openings, additional openings are available. HKBX series is made of die cast copper-free aluminum (less than 4/10 of 1%), supplied standard with a Nitrile (BUNA-N) O-Ring, internal external ground (earth) screws, stainless steel tamper proof locking set screw and electrostatically applied grey powder paint. Internal “X” pad for mounting instruments or terminals.
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Application
- Instrumentation housed in HKBX Series enclosures typically used to measure, detect, monitor, transmit, and control industrial processes and systems. HKBX Series enclosures are suitable for a broad range of applications, meeting both domestic and international
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06316011
- Image Actual Or Representative
- A
- CSA File Number
- LR11716
- Material
- Copper-free aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 2
ColorGray
Engineering Drawing 1 Display TextHKXGL - Engineering Drawing
Cover TypeThreaded
Class CodeD25
Harmonization Code7616995190
Sub Class CodeD25D252
UL File NumberE83696
SeriesHKX Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs2
Carton - SCC-14 Next Lower Level Sub Pack00783936181837
