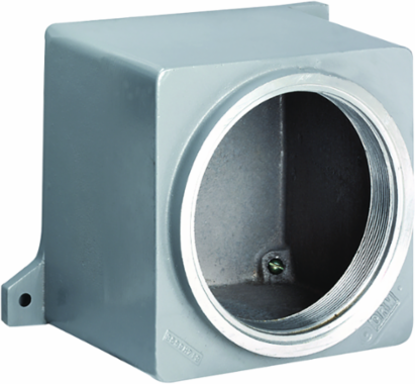

Killark GRHB GR Series Cast Aluminum Junction Box, 13.5 X 12.5 X 8.75 Inch, NEMA 3, 4, 4X
- MPN: GRHB
- UPC: 783936228051
- PPN: HBL-GRHB
- UNSPSC: 39121314
CAD
$1291.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
GR Series, 9.5 X 10.5 X 5, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Without Screw Cover Enclosure
Features
- Compact rectangular enclosures with threaded screw covers provide easy access to interior.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Available with a flat blank or dome covers.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4X rating.
- Cast mounting lugs are standard on all boxes.
- Internal ground screw supplied on all boxes.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of box and cover.
- Mounting pans are available.
- Conduit and device openings factory or field installed.
- Compact square or rectangular enclosures. Can be shipped in component parts and still maintain third party UL-CSA-FM approvals. Cast mounting lugs are standard on all assemblies. Available as blank box or can be custom drilled and tapped for conduit openi
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Application | Hazardous locations due to the presence of flammable gases or vapors, combustile dusts or easily ignitable fibers or flyings, and areas which are subject to corrosion, weather, and dampness. Installations at petroleum refineries, chemical and petrochemica |
| Length | 13.5 in |
| Size | 13.5 in x 12.5 in x 8.75 in |
| Type | Enclosure Only |
| Engineering Drawing 1 Display Text | GRHB Engineering Drawing |
| Nema Rating | 3, 4, 4X |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| CSA File Number | LR11716 |
| UL File Number | E10514 / E83696 |
| Series | GR Enclosures Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
| Dimensions | 13.5 in x 12.5 in x 8.75 in |
|---|---|
| Height | 8.75 in |
| Color | Gray |
| NEMA Rating | 3, 4, 4X |
| Special Features | Compact square or rectangular enclosures. Can be shipped in component parts and still maintain third party UL-CSA-FM approvals. Cast mounting lugs are standard on all assemblies. Available as blank box or can be custom drilled and tapped for conduit openi |
| Width | 12.5 in |
| Cover Type | Threaded |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | GRH BOX ONLY |
| Harmonization Code | 7616995190 |
| Lead Time | 20 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D25D252 |
| Gross Weight with Packaging | 34 |
| Material | Copper-free aluminum |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936228051 |
| NAICS Code | 3359326103 |
