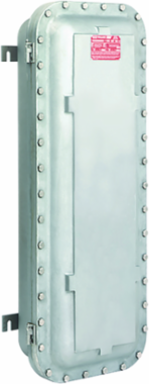

Killark B7EL Junction Box, 13 X 29 X 6.63 Inch, Cast Aluminum, NEMA 3, 4, 4X, Hazardous Location
Killark B7EL Junction Box, 13 X 29 X 6.63 Inch, Cast Aluminum, NEMA 3, 4, 4X, Hazardous Location
- MPN: B7EL
- UPC: 783936020280
- PPN: HBL-B7EL
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
B7E Series, 13 X 29 X 6.63, Class I, II, III, BCDEFG, Cast Aluminum, Type 4, Bolted Enclosure
Features
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Quick release, captivated cover bolts of 316 grade stainless steel for maximum protection from corrosion.
- Triplelead bolts require only 3-1/2 turns to disengage.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4X rating.
- Mounting lugs are bolt on, made from ductile aluminum alloy.
- Back pan mounting holes predrilled.
- Conduit and device openings factory or field installed.
- Aluminum hinges and stainless steel hardware standard on mid to large size boxes.
- Recessed flange notches to allow for easier cover opening.
- Copper-free cast aluminum construction - high strength, lighter in weight, and corrosion resistant. Quick release, captivated cover bolts of 316 grade stainless steel - triple-lead bolts require only 3-1/2 turns to disengage. Stainless steel (316 grade) f
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Special Features
- Copper-free cast aluminum construction - high strength, lighter in weight, and corrosion resistant. Quick release, captivated cover bolts of 316 grade stainless steel - triple-lead bolts require only 3-1/2 turns to disengage. Stainless steel (316 grade) f
- Engineering Drawing 1 Display Text
- B7EL Engineering Drawing
- Nema Rating
- 3, 4, 4X
- Class Code
- D25
- Freight Class Code
- 06316011
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E83696
- Series
- B7E Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936020280
Width18.000 in
ApplicationLocations made hazardous due to the presence of flammable gases or vapors, combustible dust, or easily ignitable fibers and flyings, and areas which are subject to corrosion, weather, and dampness. Petroleum refineries, chemical and petrochemical plants w
NEMA Rating3, 4, 4X
TypeJunction Box
Cover TypeBolted
ARRA CompliantContact Manufacturer
Description - InvoiceENCL, PRISM 13"X 29"
Harmonization Code7616995190
Lead Time20 wk
Order Multiple1 EA
Sub Class CodeD25D252
Gross Weight with Packaging170
MaterialCopper-free aluminum
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
