Klein Tools 1659-40 Chicago Grip for PVC-Covered Conductors, 0.49-0.79 Inch Cable Diameter, 8000 lb Safe Load
- MPN: 1659-40
- UPC: 092644471292
- PPN: KLT-1659-40
- UNSPSC: 46182308
CAD
$1026.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

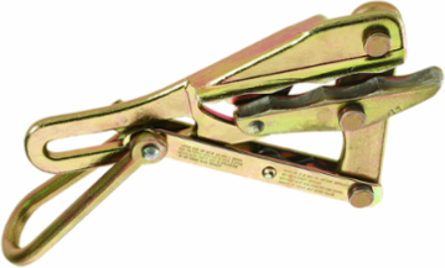

The Klein Tools 1659 Series PVC-Covered Chicago Grips have a specially machined serpentine jaw which allows an insulated conductor to be inserted through the jaws. This eliminates the need to strip insulation from the conductor first. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Features
- Serpentine jaws are specially machined to allow insertion of insulated conductor through the jaws, which reduces danger of slippage which might result in insulation damage
- Eliminates necessity of stripping insulation from conductor
- Round inside-jaw contour
- Manufactured from drop-forged, heat-treated steel for excellent durability
- Made in USA
- (NOT HDPE)
Documentation & Downloads
Specifications
Key Specifications
- Cable Type
- PVC-Coated
- Material
- Steel
- Jaw Type
- Round
- Locking Handle
- Yes
- Spring
- Yes
- Teeth Type
- Serpentine
- Jaw Length (cm)
- 14.4
- Jaw Length (Inch)
- 5.688
- Weight (lb)
- 7.7
- Width
- 5.8500 in
- Weight
- 7.7220 lbs
Cable Diameter0.49" to 0.79" (12.45 to 20.07 mm)
ApplicationWire Pulling
TypeChicago Grip
Hot LatchNo
Swing LatchNo
Weight (kg)3.5
Maximum Safe Load (kg)3628.7
Maximum Safe Load (lb)8000
Height2.2500 in
Depth10.9170 in
