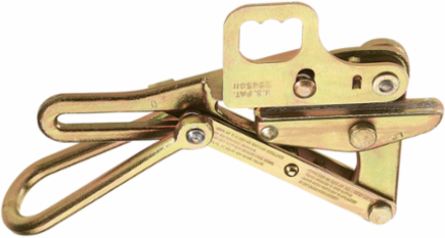

Klein Tools S1684-5H Chicago Grip with Hot-Line Latch, 5 Inch Jaw, 0.218 to 0.55 Inch Cable Diameter, 8000 lb Max Load
- MPN: S1684-5H
- UPC: 092644471681
- PPN: KLT-S1684-5H
- UNSPSC: 46182308
CAD
$1006.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Klein S1684-5H Chicago Grip-with Hot-Line Latch for Bare Conductors are for both bare and insulated conductors . The Klein S1684-5H Chicago Grip-with Hot-Line Latch for Bare Conductors grip may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire.
Features
- Works with Aircraft, EHS, Messenger, Guy Strand cable
- Double V inside-jaw contour
- Maximum Safe Load: 8000-Pound (3629 kg)
- Standard hot-line grips are not supplied with springs or lock-open features
- Made in USA
- Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
- Jaw length: 5-Inch
Documentation & Downloads
Specifications
Key Specifications
- Material
- Steel
- Application
- Wire Pulling
- Jaw Type
- Double V
- Locking Handle
- Yes
- Spring
- Yes
- Teeth Type
- Smooth
- Overall Length (cm)
- 37.5
- Overall Height (Inch)
- 8.63
- Maximum Safe Load (kg)
- 3628.7
- Overall Height (cm)
- 21.9
- Maximum Safe Load (lb)
- 8000
- Overall Width (cm)
- 6
- Width
- 8.0000 in
- Weight
- 0.1000 lbs
TypeChicago Grip
Cable TypeAircraft, EHS, Messenger, Guy Strand
Cable Diameter0.218" to 0.55" (5.54 to 13.97 mm)
Hot LatchYes
Swing LatchNo
Weight (kg)3
Overall Width (Inch)2.38
Jaw Length (cm)12.7
Jaw Length (Inch)5
Overall Length (Inch)14.75
Weight (lb)6.7
Height3.0000 in
Depth10.0000 in
