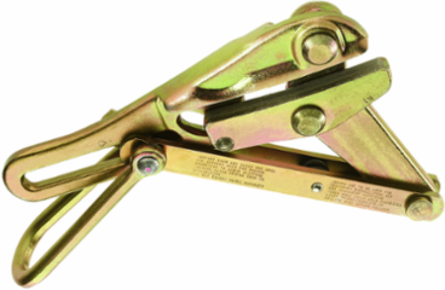

Klein Tools 1684-74 Chicago Grip for EHS Cable, 0.12-1.0 Inch, Double V Jaw, 8000 lb Max Load
- MPN: 1684-74
- UPC: 092644471728
- PPN: KLT-1684-74
- UNSPSC: 46182308
CAD
$816.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.12-Inch to 1.0-Inch (3.10 to 25.4 mm). When pulling EHS (extra-high-strength) galvanized-steel cable, the galvanizing has a tendency to coat the jaws of any grip, causing the cable to slip. Double V contour reduces the possibility of slippage and damage to the cable.
Features
- When pulling EHS (extra-high-strength) galvanized-steel cable, the galvanizing has a tendency to coat the jaws of any grip, causing the cable to slip
- To reduce the possibility of slippage and damage to the cable, the jaws of this grip are milled on a curve with a double V contour
- For use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
- Made in USA
Documentation & Downloads
Specifications
Key Specifications
- Jaw Type
- Double V
- Material
- Steel
- Application
- Wire Pulling
- Locking Handle
- Yes
- Spring
- Yes
- Teeth Type
- Milled/Curved
- Jaw Length (cm)
- 12.7
- Jaw Length (Inch)
- 5
- Weight (lb)
- 5.6
- Width
- 6.3000 in
- Weight
- 5.6250 lbs
Cable Diameter0.218" to 0.55" (5.54 to 13.97 mm)
Cable TypeAircraft, EHS, Messenger, Guy Strand
TypeChicago Grip
Hot LatchNo
Swing LatchNo
Weight (kg)2.5
Maximum Safe Load (kg)3628.7
Maximum Safe Load (lb)8000
Height1.5840 in
Depth9.0000 in
