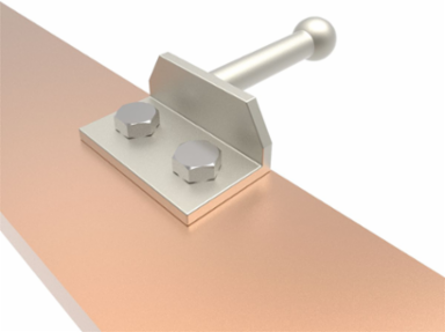

Burndy GSC632NH25B5H Ground Stud, Tin-Plated Copper, 25mm Ball Stud, 90 Offset NEMA Pad, Grade 5H
- MPN: GSC632NH25B5H
- UPC: 621945651098
- PPN: BUR-50087255
- UNSPSC: 39121408
CAD
$343.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Used when servicing a pad mounted transformer, our ground studs have an optional thermoplastic elastomer cover providing safe maintenance of equipment for optimal uptime for your upcoming projects in the Renewable, Industrial, and Utility Markets.
Features
- ASTM F855 Grade 5H Tested and Rated
- Third-party laboratory test results available
- 25mm Ball Stud
- 90° offset pad
- NEMA spacing for 1/2" Hardare
- Cast copper alloy
- Tin-plated for corrosion resistance

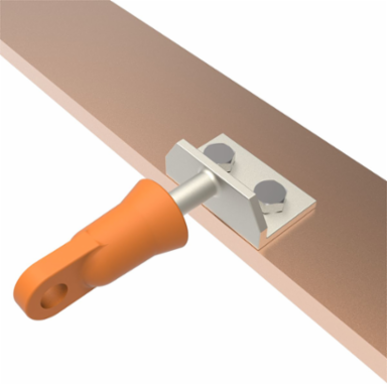

- Stud Cover Available - GSC632NH1BCOVER1
- ASTM F588 Grade 5H
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 1.38 in
- Size
- 25mm Ball Stud
- Type
- Safety Ground Stud
- Class Code
- B41
- Harmonization Code
- 8535908060
- Sub Class Code
- B41BD2F
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.400 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 6
- Package - GTIN - Package
- 30621945651099
- Pallet - GTIN - Package
- 70621945651097
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Dimensions5.69 in x 3.25 in x 1.38 in
Length5.69 in
Special FeaturesASTM F588 Grade 5H
Width3.25 in
Freight Class Code16027000
Image Actual Or RepresentativeA
MaterialTin-Plated Copper
BOX SIZE5.125x7.373x6.438 (in)
Carton - Number of Sub Packs6
Carton - SCC-14 Next Lower Level Sub Pack00621945651098
Case - SCC-14 Next Lower Level Sub Pack30621945651099
Package Quantity6 EA
Pallet Height46.750 in
Pallet Weight1909.800 lb.
NAICS Code423610
