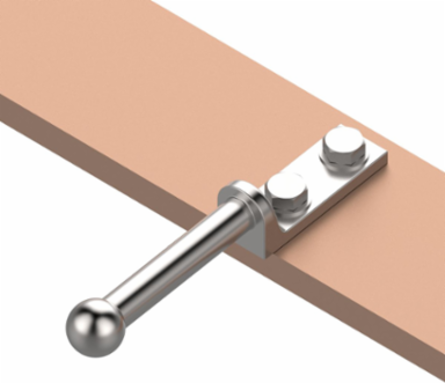

Burndy GSC752N30B5H Safety Ground Stud, Tin-Plated Copper, 30mm Ball Stud, ASTM F855 Grade 5H

MPN: GSC752N30B5H
UPC: 621945651081
PPN: BUR-50122465
UNSPSC: 39121408

$207.31

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Used when servicing a pad mounted transformer, our ground studs have an optional thermoplastic elastomer cover providing safe maintenance of equipment for optimal uptime for your upcoming projects in the Renewable, Industrial, and Utility Markets.

Features

ASTM F855 Grade 5H Tested and Rated
Third-party laboratory test results available
30mm Ball Stud
Inline pad
NEMA spacing for 1/2" Hardware
Cast copper alloy
Tin-plated for corrosion resistance

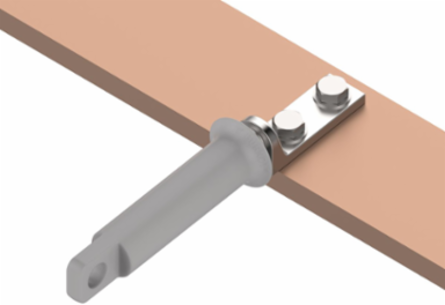

Stud Cover Available - GSC75030BCOVER
ASTM F588 Grade 5H

Specifications

Key Specifications

Country of Origin	United States
Height	1.5 in
Size	30mm Ball Stud
Type	Safety Ground Stud
Class Code	B41
Harmonization Code	8535908060
Sub Class Code	B41BD2F
Base Unit of Measure	EA
Carton - Gross Weight per Pack	0.000 lb.
Carton - Pack Description	Carton
Carton - Total Units	100
Package - GTIN - Package	30621945651082
Package Weight	0.000 lb.
Pallet Weight	0.000 lb.

Dimensions	8.73 in x 1.25 in x 1.5 in
Length	8.73 in
Special Features	ASTM F588 Grade 5H
Width	1.25 in
Freight Class Code	16027000
Image Actual Or Representative	A
Material	Tin-Plated Copper
BOX SIZE	0.000x0.000x0.000 (in)
Carton - Number of Sub Packs	100
Carton - SCC-14 Next Lower Level Sub Pack	00621945651081
Case - SCC-14 Next Lower Level Sub Pack	30621945651082
Package Quantity	10 EA
Pallet - GTIN - Package	70621945651080
NAICS Code	423610
