Weidmuller 9037470000 H1,5/16D ZH SW
- MPN: 9037470000
- PPN: WDM-9037470000
CAD
$0.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

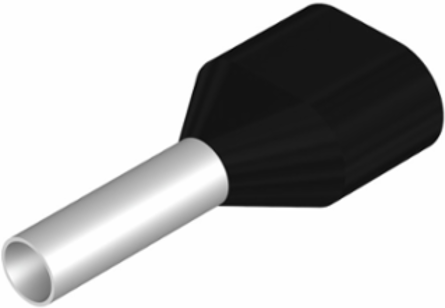

Wire-end ferrule, Twin wire-end ferrule, 11 mm, 8 mm, black
Documentation & Downloads
Specifications
Approvals
- Approvals
- CCSAUS, CULUS, UR
- UL File Number Search
- E499744
ROHSConform
Dimensions And Weights
- Width
- 16 mm
- Net weight
- 0.16 g
Width (inches)0.63 inch
Classifications
- ETIM 6.0
- EC000005
- eClass 9.0
- 27-40-02-01
- eClass 10.0
- 27-40-02-01
ETIM 7.0EC000005
eClass 9.127-40-02-01
UNSPSC31-16-31-02
Technical Data
- Version
- Twin wire-end ferrule
Wire-End Ferrules

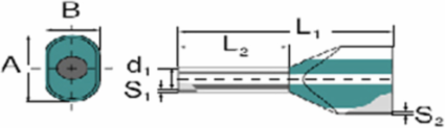

- Collar height (A)
- 6.5 mm
- Colour code
- DIN
- Contact surface diameter (D1)
- 2.2 mm
- L1 in mm
- 16 mm
- Plastic collar thickness (S2)
- 0.3 mm
- Wire connection cross section AWG, max.
- AWG 16
Collar width (B)3.6 mm
Conductor cross-section1.5 mm²
Contact surface length (L2)8 mm
Metal sleeve thickness (S1)0.15 mm
Stripping length11 mm
