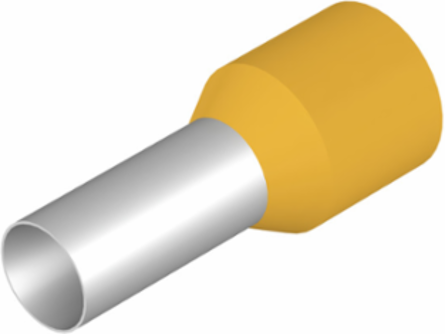

Weidmuller 9019280000 H25,0/30D 16 GE
- MPN: 9019280000
- PPN: WDM-9019280000
CAD
$0.74
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wire-end ferrule, insulated, 18 mm, 16 mm, yellow
Documentation & Downloads
Specifications
Approvals
| Approvals | BW, CCSAUS, CULUS, UR, VDE |
|---|---|
| UL File Number Search | E499744 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 16 mm |
|---|---|
| Net weight | 1.188 g |
| Width (inches) | 0.63 inch |
|---|
Classifications
| ETIM 6.0 | EC000005 |
|---|---|
| eClass 9.0 | 27-40-02-01 |
| eClass 10.0 | 27-40-02-01 |
| ETIM 7.0 | EC000005 |
|---|---|
| eClass 9.1 | 27-40-02-01 |
| UNSPSC | 31-16-31-02 |
Technical Data
| Version | insulated |
|---|
Wire-End Ferrules
| Collar diameter (D2) | 11.2 mm |
|---|---|
| Conductor cross-section | 25 mm² |
| Contact surface length (L2) | 16 mm |
| Metal sleeve thickness (S1) | 0.2 mm |
| Plastic collar thickness (S2) | 0.4 mm |
| Wire connection cross section AWG, max. | AWG 3 |
| Colour code | DIN |
|---|---|
| Contact surface diameter (D1) | 7.3 mm |
| L1 in mm | 30 mm |
| Military designation | T 20A 028 A |
| Stripping length | 18 mm |
