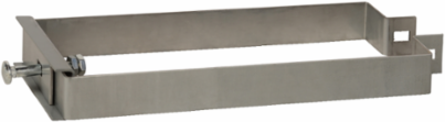

Square D HF43E Hanger, I-Line Busway, 800A for Al, 1000A for Cu, 600VAC, horizontal edgewise [TAA]
- MPN: HF43E
- UPC: 785901812753
- PPN: SCH-HF43E
- UNSPSC: 39131701
CAD
$154.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This hanger is rated 800A for Al, 1000A for Cu, that is ideal for commercial or industrial applications. Indoor horizontal busway requires one hanger for every 10 feet of busway. Vertical indoor busway requires one hanger for every 16 feet. Outdoor feeder busway requires one hanger for every 5 feet in horizontal mounting and one hanger for every 10 feet in vertical mounting. This hanger can be used with aluminum and copper busways. This unit is for horizontal edgewise mounting. This hanger meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
Features
- Supports and secures busway sections during installation.
- Maintains proper alignment and spacing between busway runs.
- Distributes weight evenly to prevent stress on joints and connections.
- Facilitates safe suspension from ceilings or structural elements.
- This product is TAA, and BAA via COTS compliant.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Compliance | |TAA Compliant | BAA Compliant via COTS |
|---|
Complementary Attributes
| Line Rated Current | 1000-1000 A copper800-800 A aluminium/copper |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL 857CSA C22.2 No 27:1994, IEC 61439-6 |
| Local Publishable Date | 2026-08-11 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | I-Line |
| Sustainable Packaging | No |
| Height Nominal | 8.36 in |
| Customs Code | 7326908688 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1913 |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Installation Direction | horizontal |
| Product Or Component Type | hanger |
| Returnability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP1407014EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1407014EN |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | hanger |
|---|
| Range Of Product | I-Line |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
