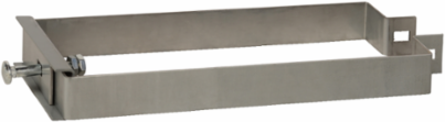

Square D HF67E Hanger, I-Line Busway, 1200A for Al, 1600A for Cu, 600VAC, horizontal edgewise [TAA]
![Hanger, I-Line Busway, 1200A for Al, 1600A for Cu, 600VAC, horizontal edgewise [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/f1dec0bdccddf05a72f25a0c826205a2f4932908-medium.png)
Square D HF67E Hanger, I-Line Busway, 1200A for Al, 1600A for Cu, 600VAC, horizontal edgewise [TAA]
- MPN: HF67E
- UPC: 785901812777
- PPN: SCH-HF67E
- UNSPSC: 39131701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$134.31/ EA
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This hanger is rated 1200A for Al, 1600A for Cu, that is ideal for commercial or industrial applications. Indoor horizontal busway requires one hanger for every 10 feet of busway. Vertical indoor busway requires one hanger for every 16 feet. Outdoor feeder busway requires one hanger for every 5 feet in horizontal mounting and one hanger for every 10 feet in vertical mounting. This hanger can be used with aluminum and copper busways. This unit is for horizontal edgewise mounting. This hanger meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
Features
- Supports and secures busway sections during installation.
- Maintains proper alignment and spacing between busway runs.
- Distributes weight evenly to prevent stress on joints and connections.
- Facilitates safe suspension from ceilings or structural elements.
- This product is TAA, and BAA via COTS compliant.
Specifications
Conformance Attributes
- Standards
- UL 857, CSA C22.2 No 27:1994, IEC 61439-6
Complementary Attributes
- Line Rated Current
- 1200-1200 A aluminium, 1600-1600 A copper
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Installation Direction
- horizontal
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- I-Line
- Sustainable Packaging
- No
- Stocking Flag
- Y
- Pep Code
- ENVPEP1407014EN
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Publishable Date2026-01-06
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Energy Efficiency OptimizedFalse
Package Weight Lbs810.0 g
Product Or Component Typehanger
ReturnabilityYes
Medium DescHanger, I-Line Busway, 1200A for Al, 1600A for Cu, 600VAC, horizontal edgewise [TAA]
Product Kit IdentifierN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1407014EN
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant , Compliant
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP1407014EN
General Attributes
- Product Or Component Type
- hanger
Range Of ProductI-Line
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Compliance
- TAA Compliant | BAA Compliant via COTS
