Pass & Seymour L2EVSE48AC Non-Networked Level 2 Hardwired Charger
- MPN: L2EVSE48AC
- UPC: 785007442700
- PPN: P-S-L2EVSE48AC
- UNSPSC: 25175002
CAD
$1411.54
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

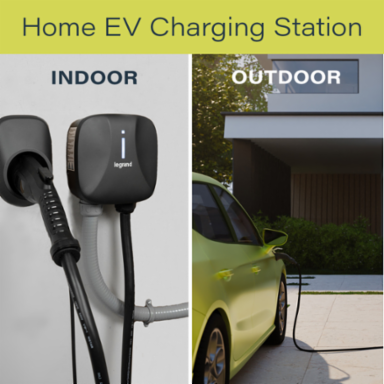

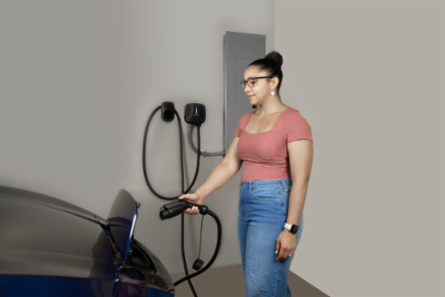

Compact yet powerful, this Hardwired Home Level 2 EV Charger is the safe, versatile and efficient way to charge any electric vehicle at home. Designed for indoor or outdoor use, the hard-wired unit can be easily installed in garages or mounted to an exterior wall for use in driveways or carports. The charger comes ready-to-wire right out of the box and requires no internet connection or software. As a Level 2 Charger, the unit offers a faster charge while the adjustable amperage – from 16A up to 48A – allows users to control the energy usage to fit their specific EV model and charging needs or preferences. An Energy Star-certified product, this Level 2 EV Charger is also eligible for rebates and incentives.
Features

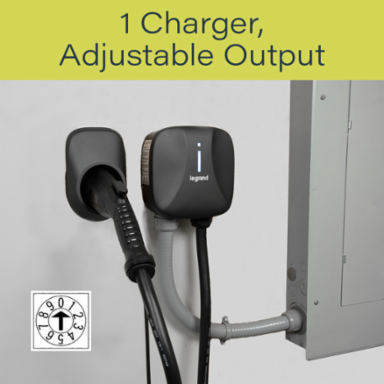

- Offers variable output (16A to 48A) to allow users to adjust their charging to meet vehicle needs or energy consumption preferences.

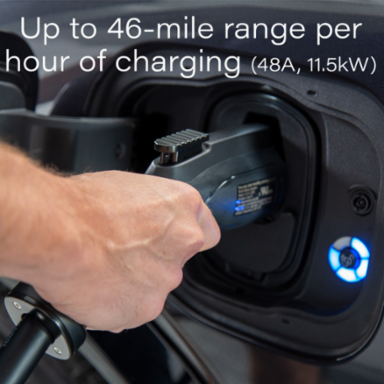

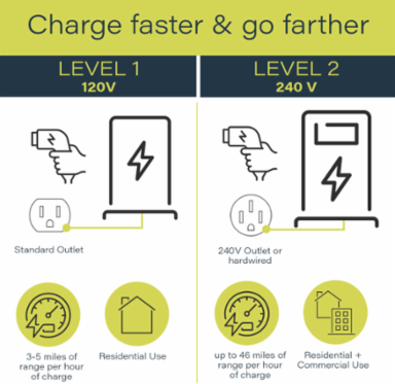

- Delivers fast level 2 charging: charges from 0 to 100% in 6-8 hours and can provide up to a 46-mile range per hour of charging when set for high-power output (48A, 11.5kW).

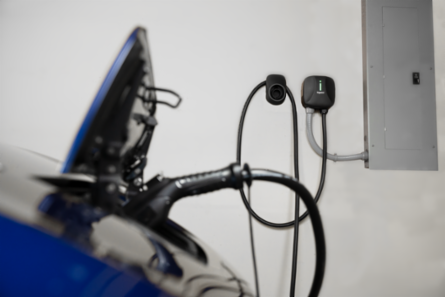

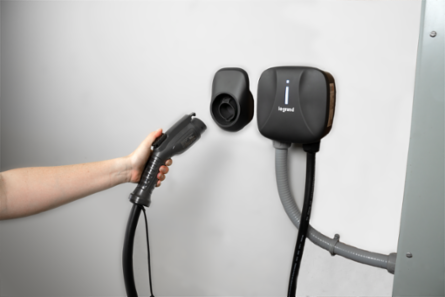

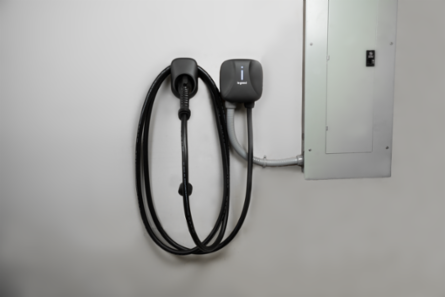

- Sleek and compact, the unit mounts neatly to interior or exterior walls for installation in garages, driveways or carports.

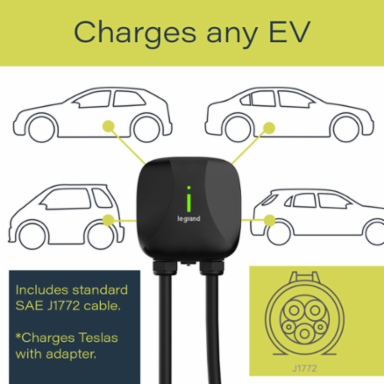

- Works with any* electric vehicle using a SAE J1772 Connector, the North American standard for EV charging. *Adapter required for Tesla models.

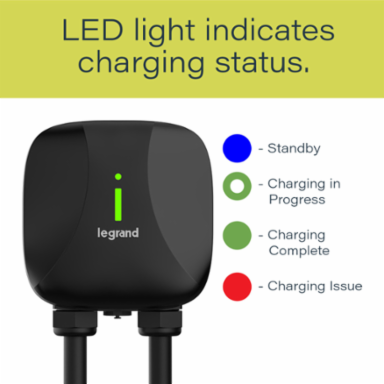

- Indicates charging status via LED light, easily showing if the vehicle is charging, fully charged or if there is a charging issue, all at a glance.

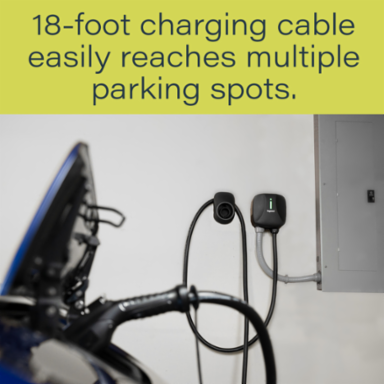

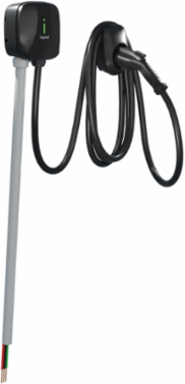

- Features an 18-foot charging cable for easily reaching multiple parking spots.
- Includes storage hook and holster for keeping the charging cable neatly off the floor for both safety and convenience.
- Meets the efficiency standards required by the Energy Star program, qualifying users for potential rebates and tax credits. Visit www.energystar.gov for eligibility details. Additional goverment or utility incentives also available.

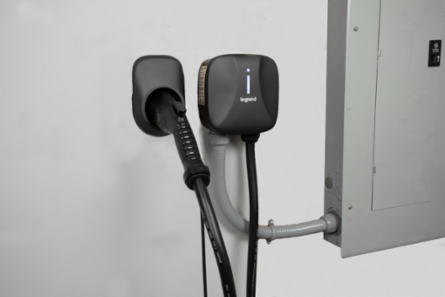

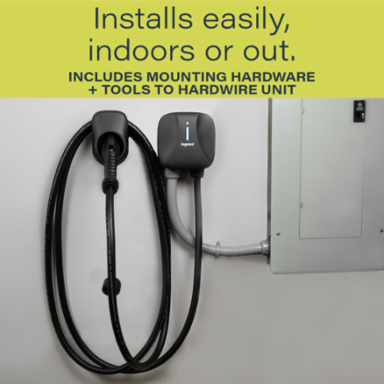

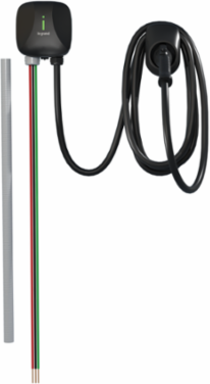

- Installs safely and easily with simple, three-wire termination and included flexible conduit kit. No commissioning, programming or complicated setup required.
- Accomodates NEC-compliant installations with included 1" NPT flexible conduit kit and liquid-tight connectors.

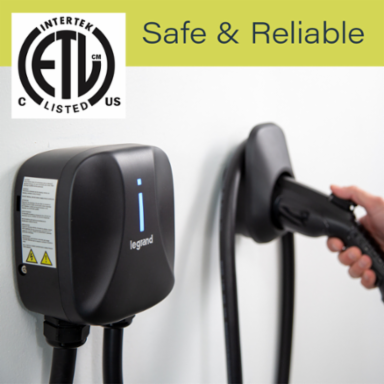

- Meets Safety & Materials Standards: cETLus listed to UL standards, FCC & ID certified, and CA Prop-65 and RoHS compliant.

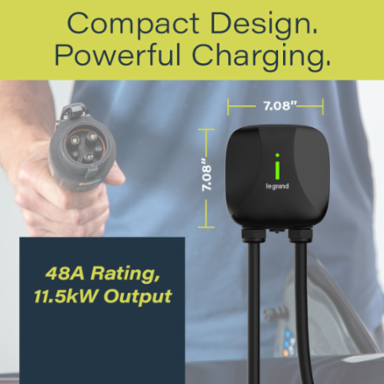

- Power delivery: 11.5 KW @ 48A
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Height | 7.1 in |
| Weight | 15.0 lbs |
| Finish | Matte |
| Product Line | Pass & Seymour |
| NEMA Rating | NEMA 3R |
| Connection Type | Hardwired |
| Mounting Type | Wall |
| Seismic Tested | No |
| Cable Length | 18.0 ft |
| Environmental Conditions | 95% (relative humidity, non-condensing) |
| Depth | 3.7 in |
|---|---|
| Width | 7.1 in |
| Color | Black |
| Material | Polycarbonate |
| Indoor/Outdoor | Both |
| Application Sector | Residential |
| Warranty Type | 1-Year Limited Warranty |
| Special Features | UVP, OVP, RCD (CCID 20), SPD, Ground Fault Protection OCP, OTP, Control Pilot Fault Protection |
| Connection | SAE J1772 Connector (North America Standard) |
| Amperage | 48.0 A |
| Standard | cETLus; FCC; IC; Energy Star; CA Prop 65; RoHS |
