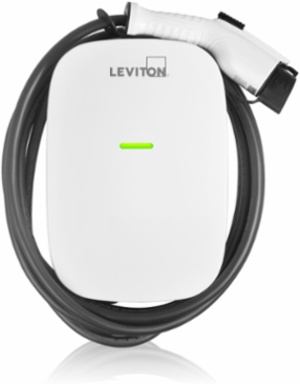

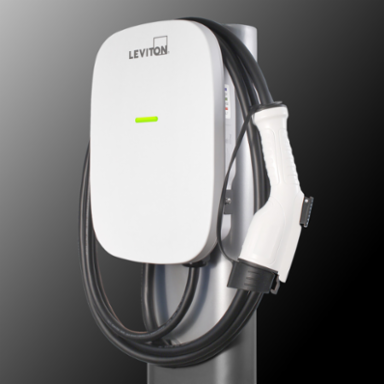

Leviton EV320 Level 2 Electric Vehicle Charger, 32 Amp, 7.6kW Output, 18 ft Cord
- MPN: EV320
- UPC: 078477877579
- PPN: LEV-EV320
CAD
$1117.80
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

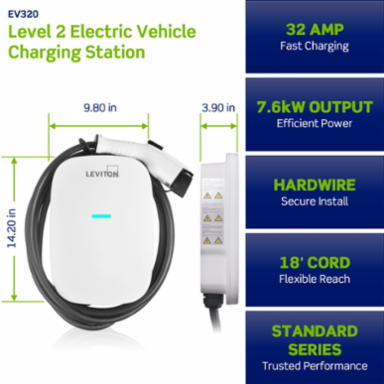

EV Series Standard Level 2 Electric Vehicle Charging Station, 32 A, 208/240 VAC, 7.6kW Output, J1772 Charge Connector, 18' Cord, Includes Mounting Bracket and Pre-Attached Input Cable, HARDWIRED ONLY
Features

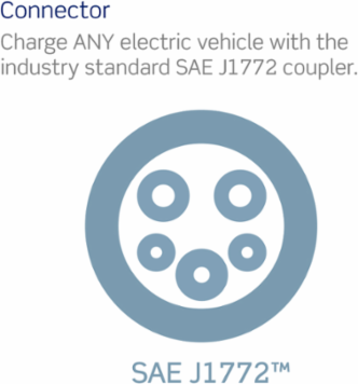

- Fast and secure charging of any SAE J1772™ compatible electric vehicle

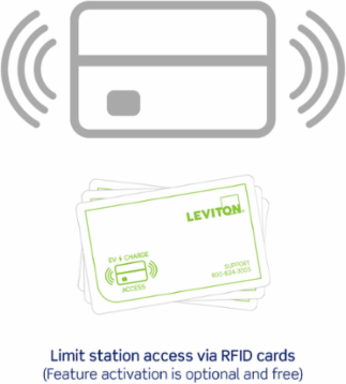

- Optional access control; station comes with RFID disabled - simply tap RFID card to activate
- Cable design prevents cord from freezing and cracking in extreme weather
- For indoor and outdoor use with a thermoplastic, water-resistant enclosure rated NEMA Type 3R

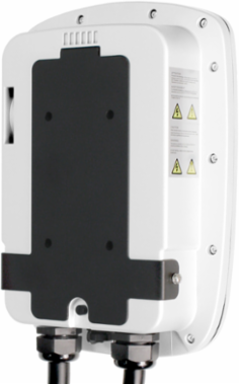

- Easy installation with pre-attached input cable and mounting hardware included
- Energy Star Certified

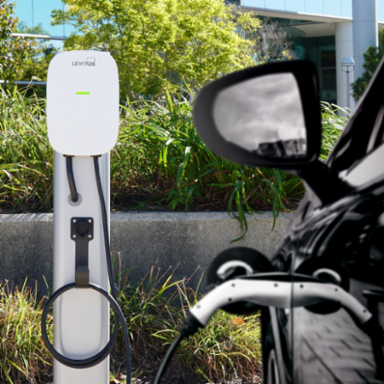

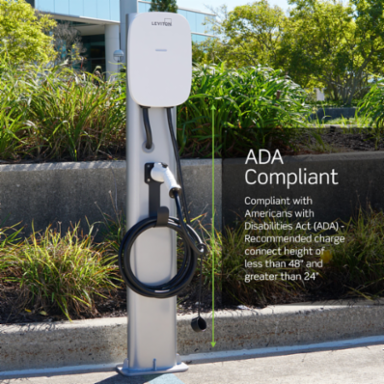

- Every pedestal works effortlessly with all EV Series Hardwired Units, making it easy to customize your charging setup for any location Have Questions? Search the knowledge base.
Documentation & Downloads
Specifications
Additional
| Amperage | 32 A |
|---|---|
| Output Power | 7.6 kW |
| Short Circuit Current Rating | 20 mA CCID per UL 2231 |
| Cooling | Natural Cooling |
| Operating Humidity | <95% Relative Humidity, Non-Condensing |
| Cable Length | 18 ft. (5.5 m) |
| Cover Locking Mechanism | Phillips Head Screws, No Padlock Option |
| Enclosure Material | Plastic (PC+PBT) |
| Standards and Certifications | UL2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991, UL 1998, NFPA 70 Article 625, UL840, CSA Std. C22.2#280, OCPP 1.6 Compliant, cETLus, RoHS |
| Application | Home, Commercial |
| Country of Origin | China |
| Voltage | 208/240 VAC |
|---|---|
| Breaker | 40 A |
| Number of Phase / Wire | L1, L2 and Ground, Bottom Feed |
| Operating Temperature | -30C to 50C |
| Altitude | Up to 6,500 ft. (2,000 m) |
| Charge Connector Cord | #10 AWG SAE J1772 |

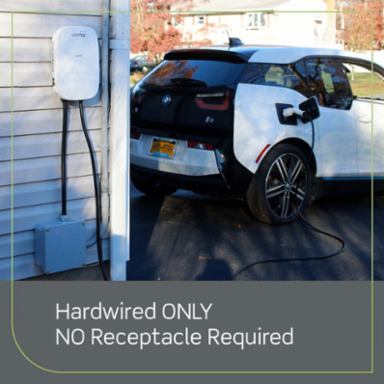

| Installation Type | Hardwired only |
| Enclosure Rating | NEMA Type 3R |
| Warranty | 2-Year Limited |
| Device Type | Charger |

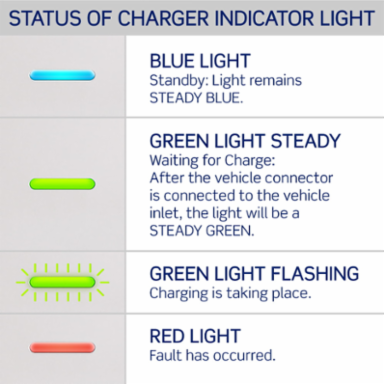

| Status Indicator | Power Present, Charging, Fault |
