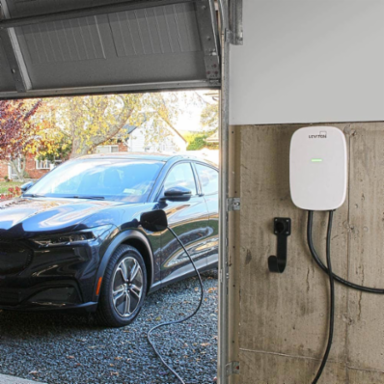

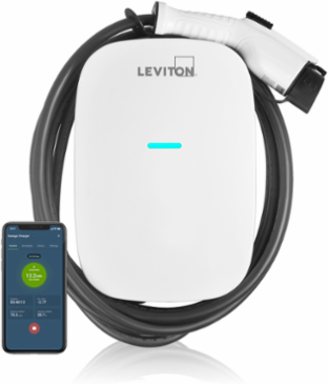

Leviton EV80W 80 Amp Level 2 Electric Vehicle Charging Station, 19.2kW, J1772 Connector, 18 Ft Cord
- MPN: EV80W
- UPC: 078477334096
- PPN: LEV-EV80W
CAD
$2833.39
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

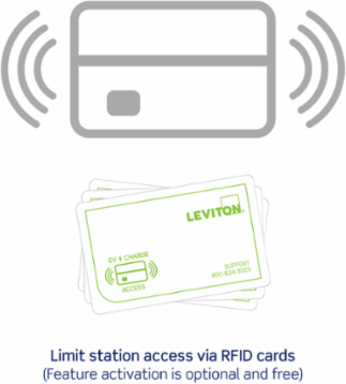

EV Series Smart Home Level 2 Electric Vehicle Charging Station, 80A, 208/240 VAC, 19.2kW Output, J1772 Charge Connector, 18' Cord, Includes Mounting Bracket and Pre-Attached Input Cable, Optional RFID Control, Wi-Fi Compatible (Wi-Fi Function 802.11 b/g/n). HARDWIRED ONLY
Features

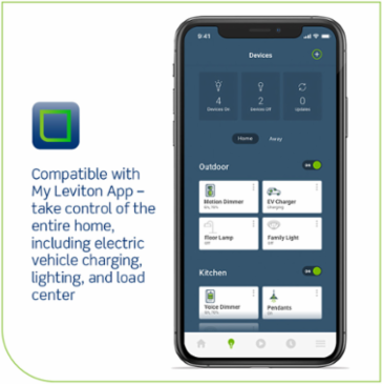

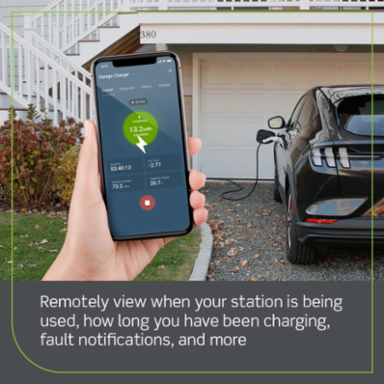

- SMART – Works with the My Leviton App via Wi-Fi, allowing you to take control of your entire home, from load center to lighting to EV charger.

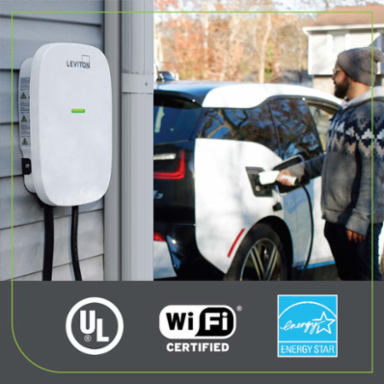

- THE BRAND YOU TRUST – Leviton has been in homes for over a century and electrifying vehicles for over a decade. Charge at ease with UL/Energy Star Certified stations supported by a 24/7 dedicated team
- FOR ANY APPLICATION – featuring a water-resistant enclosure rated NEMA Type 3R and a cable designed to prevent freezing and cracking in extreme weather, you can install both indoors and outdoors

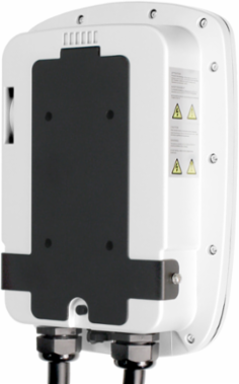

- EASY TO INSTALL – benefit from major times savings with a pre-attached input cable and included mounting hardware. Note this station is hardwired and requires a 100 Amp breaker

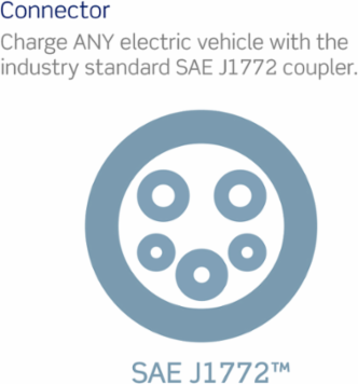

- CHARGE ANY ELECTRIC VEHICLE – with an industry standard SAE J1772™ cable, the EV Series can charge any EV, including Audi, BMW, Ford, Honda, Subaru, and even Tesla with a Tesla-supplied adapter
- UNIVERSAL COMPATIBILITY – Every pedestal works effortlessly with all EV Series Hardwired Units, making it easy to customize your charging setup for any location Learn more about the My Leviton app Have Questions? Search the knowledge base. Take advantage of government rebates and incentives.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantTrue
Standards and Certifications
- Standards and Certifications
- UL2594| UL 2231-1| UL 2231-2| UL 2251| UL 62| UL 991|UL 1998| NFPA 70 Article 625| UL840| CSA Std. C22.2#280| OCPP 1.6 Compliant| cETLus
Material Specifications
- Enclosure Material
- Plastic (PC+PBT)

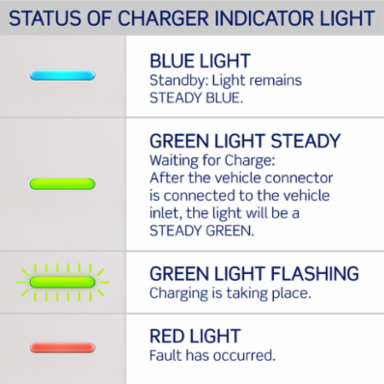

- Status Indicator
- Power Present, Charging, Fault
Enclosure RatingNEMA Type 3R
Mechanical Specifications
- Cable Length
- 18 ft. (5.5 m)
Product Features
- Application
- Home
- Device Type
- Charger
Cover Locking MechanismPhillips Head Screws, No Padlock Option
FeatureMy Leviton Enabled
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Altitude
- Up to 6,500 ft. (2,000 m)
- Cooling
- Natural Cooling
Charging Cable Operating Temperature-30°C to +50°C
Operating Humidity< 95% Relative Humidity, Non-Condensing
Electrical Specifications
- Amperage
- 80 A
- Charge Connector Cord
- SAE J1772
- Operating Temperature
- -30°C to 50°C
- Short Circuit Current Rating
- 20 mA CCID per UL 2231
Breaker100 A
Number of Phase / WireL1, L2 and Ground, Bottom Feed
Output Power19.2kW
Voltage208/240 VAC
