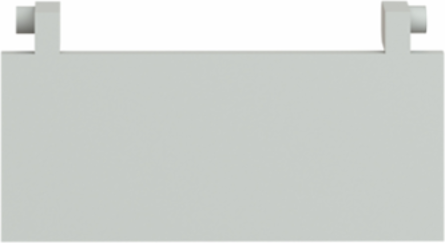

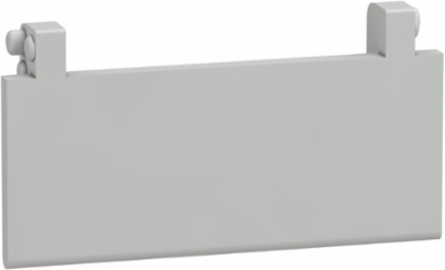

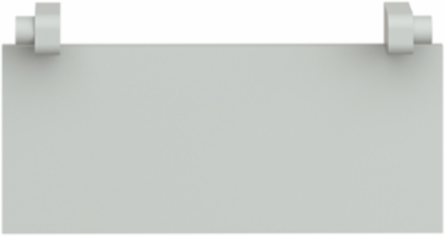

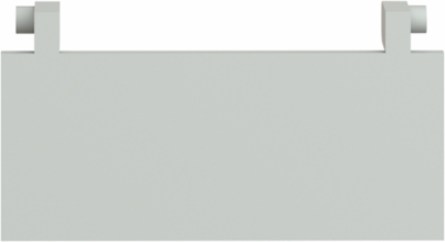

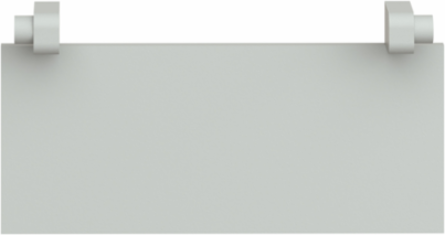

Schneider Electric RXZL420 Harmony Electromechanical Relays Clip-in Legend Set, Customizable Identification
- MPN: RXZL420
- PPN: SCH-RXZL420
CAD
$0.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
"This Harmony RXZ clip-in legend set is used for identification of relay." "It is supplied with blank plate for custom engraving to support any desired marking and can be easily assemble with relay socket via clip-in mounting." "It is compatible with socket RXZ with connector." "Blank legend allows customization of any markings as required." "It can be matched with any relay socket from RXZ range." 0 0 0 0 0 0 0 0 0 0 0
Features
- The Schneider Electric RXZL420 legend set is engineered specifically for the Harmony Electromechanical Relays range, clipping directly onto standard RXZ and RXZE screw terminal sockets (with the exception of the RXZE2M114 model). This precise mechanical fit eliminates guesswork during panel fabrication, providing a secure hold that won't slip loose under heavy machine vibration.
- Each marking accessory features a clean, blank surface optimized for custom engraving, thermal labels, or industrial permanent markers. This flexibility allows control systems engineers and panel builders to clearly map specific relay functions, drastically reducing troubleshooting downtime and preventing costly cross-wiring errors during field maintenance.
- This authentic Schneider Electric Canada component is classified as a Green Premium product, certifying complete compliance with global RoHS and REACH sustainability standards. By integrating these toxic heavy metal-free and mercury-free accessories into your control panel layouts, you satisfy strict environmental audits while maintaining a highly professional, organized system infrastructure.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, United States |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Product Or Component Type | legend |
| Returnability | Yes |
| Sustainable Packaging | No |
| Accessory / Separate Part Category | marking accessory |
| Package Weight(Lbs) | 0.600 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony Electromechanical Relays |
| Sale Per Indivisible Quantity | 10 |
| Pep Code | ENVPEP1511021EN |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 3926902500 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP1511021EN |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | socket RXZ connector |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1511021EN |
General Attributes
| Product Or Component Type | legend |
|---|
| Range Of Product | Harmony Electromechanical Relays |
|---|
ETIM
| ETIM 8 | EC001288 |
|---|
| ETIM 9 | EC001288 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
