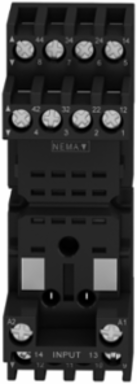

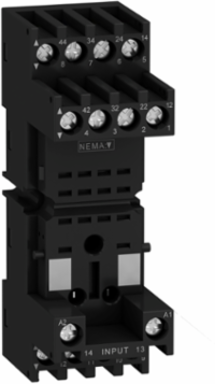

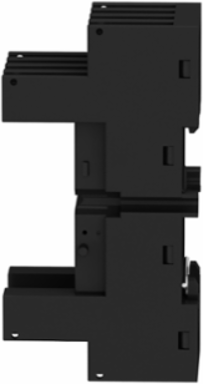

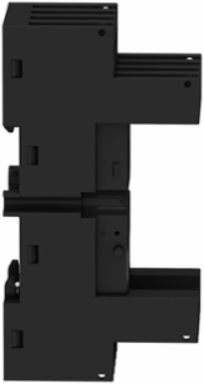

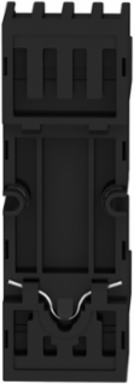

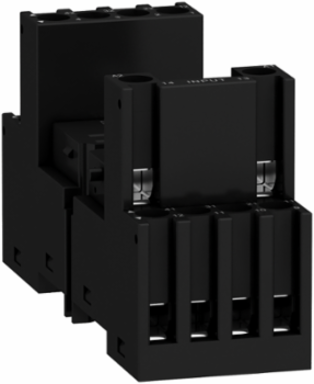

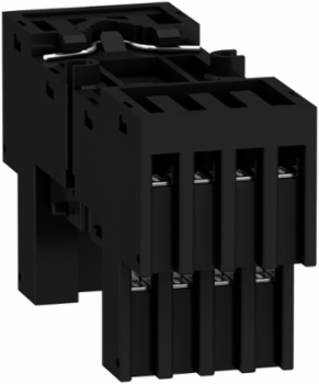

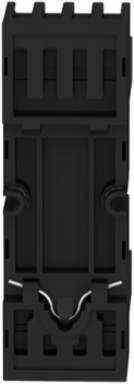

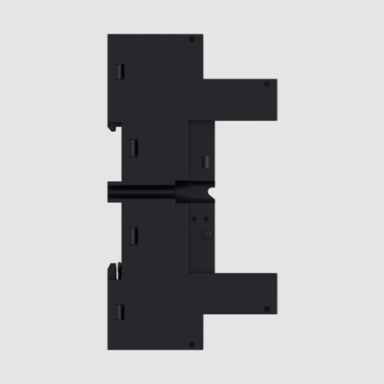

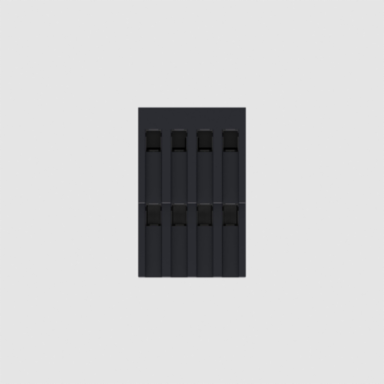

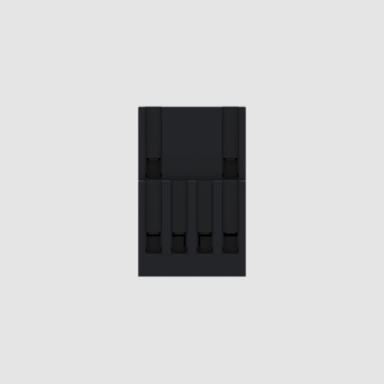

Schneider Electric RXZE2M114M Harmony Electromechanical Relay Socket, 250V AC, 10A, DPDT
- MPN: RXZE2M114M
- PPN: SCH-RXZE2M114M
CAD
$14.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
Features
- This is a premium, 4-pole bus-style relay socket designed specifically for the Schneider Harmony RXM (Miniature) relay series. It acts as the critical mounting interface between your field wiring and the plug-in relay, allowing for organized, DIN-rail mounted electrical distribution in industrial control panels.
- The "M" in the part number indicates a bus-style terminal layout. Unlike standard sockets where terminals are scattered, the bus design aligns all inputs and outputs in a logical, streamlined row. This allows for the use of bus jumpers to quickly link common poles across multiple sockets, drastically reducing the labor time and wire clutter associated with complex control logic.

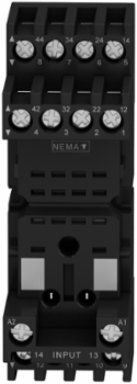

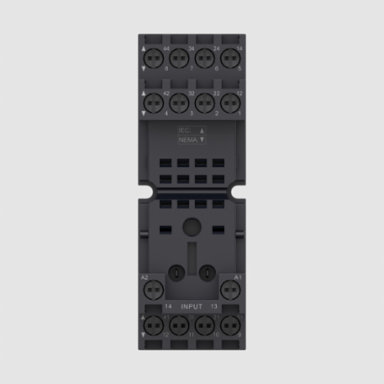

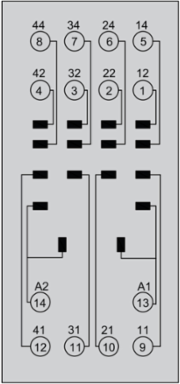

- This socket features a 14-pin arrangement specifically designed to accommodate 4 C/O (4PDT) relays, such as the RXM4AB2F7. The high-precision female receptacles ensure a low-resistance, vibration-proof connection with the relay pins, maintaining signal integrity even in heavy machinery environments.

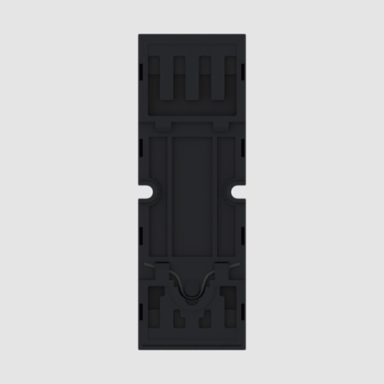

- Engineered with a slim, space-efficient profile, the RXZE2M114M maximizes your available rail density. It features a robust 35mm DIN rail clip and an integrated slot for an optional plastic or metal maintaining clamp, ensuring the relay stays securely seated even when subjected to the high-vibration conditions typical of industrial pump skids or conveyor systems.
- This socket is rated for a conventional thermal current of 10 Amps and a voltage of 250V. It features robust screw-clamp terminals that provide a secure, gas-tight bond for wires up to 14 AWG, ensuring reliable performance in both low-voltage PLC signaling and standard 120V AC control circuits.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Singapore, United States
Physical Attributes
- Wire Stripping Length
- 8 mm
Complementary Attributes
- Line Rated Current
- 10 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range Of Product
- Harmony Electromechanical Relays, Harmony Timer Relays
- Certificate Agency
- UL, CSA, Lloyd's
- Connections - Terminals
- screw connectors, screw connectors, 1 x 0.34...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endscrew connectors, 2 x 0.34...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endscrew connectors, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew connectors, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.1492624380704362
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.4 kg CO2 eq., 0.42739931436854195
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- RXZ
- Contacts Type And Composition
- 4 C/O
- Dielectric Strength
- 2500 V
- Group Of Product
- RXM_2-4_C/O_CON_MIX_FLAT
- Overvoltage Category
- III
- Product Or Component Type
- socket
- Sale Per Indivisible Quantity
- 10
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 0.6 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 2 changeover contacts DPDT with a rating of 10A. This product is space-saving design which helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere.It is compatible with plug in relay and it has life span of 20 years and adhering to international standard IEC 61984.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Global, GLO
- Recyclability Potential In %
- 46
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Tightening Torque< 1 N.m M3, < 1 N.m M3< 1 N.m M3, < 1 N.m M3
[Ue] Rated Operational Voltage< 250 V IEC, < 250 V IEC, < 300 V UL, < 300 V UL< 250 V IEC, < 250 V IEC, < 300 V UL, < 300 V UL
Carbon Footprint Of The Distribution Phase [A4]0.04471793861273453, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00032309219340593355, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contact Terminal Arrangementmixed
Device Short NameRXZ
Fixing Modeby screw (panel)clip-on (35 mm symmetrical DIN rail)
MarkingCE
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Shape Of Pinflat
Sustainable PackagingYes
Pep CodeENVPEP2502014EN
Pep Verification Date2025-04-14
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.

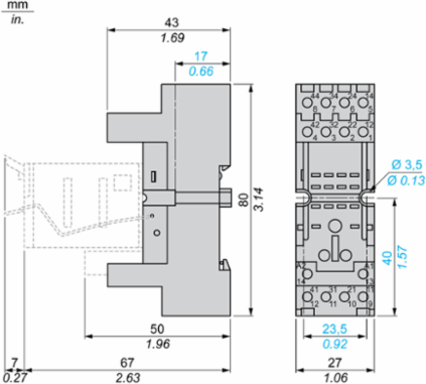

Width Nominal27 mm
[Uimp] Rated Impulse Withstand Voltage4 kV
Package Weight(Lbs)55.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Product Compatibility
- plug-in relay REXL 4 C/Oplug-in relay RXM 2 C/O, plug-in relay RXM 4 C/O, plug-in relay 782H 4 C/O, plug-in relay REXL 2 C/O
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2502014EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-04-14
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.6217027832451186
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2502014EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Range Of Product
- Harmony Electromechanical Relays, Harmony Timer Relays
Product Or Component Typesocket
ETIM
- ETIM 8
- EC001456
ETIM 9EC001456
Output Attributes
- Output Type
- relay
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
