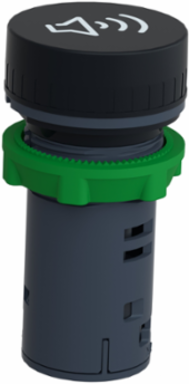

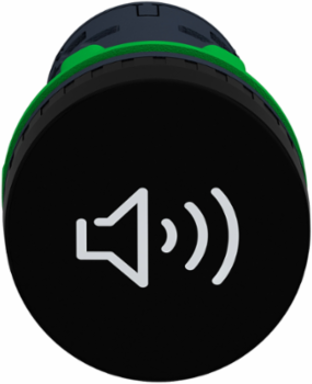

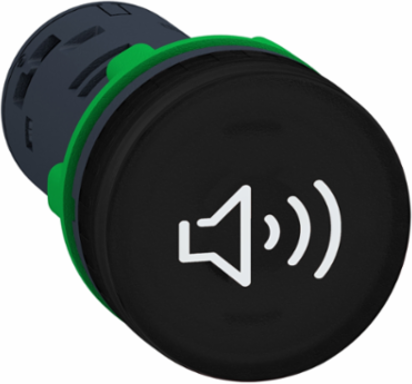

Schneider Electric XB5KSM Harmony XB5 Annunciator Buzzer, 22mm, 230-240V AC, 90 dB

MPN: XB5KSM
PPN: SCH-XB5KSM
UNSPSC: 39121534

$56.03

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XB5, annunciator siren is supplied with 230V to 240V AC with noise level 85dB. This annuciator siren provides a signaletic sound alarm for your installation. It is easily installed into standard 22mm diameter cut-outs. It has an IP40 protection. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Excellent mechanical connection with operator head
A large set of accessories to customize your panels

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, Mexico

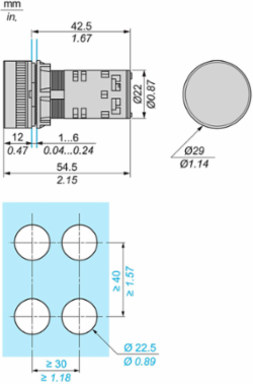

Depth	55 mm

Weight	24 g

Complementary Attributes

Us Rated Supply Voltage	230...240 V230...240 V +/- 10 %

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Current Consumption	<= 18 mA, <= 18 mA
Certificate Agency	UL Listed, CSA, BV
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.003784475
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.8 kg CO2 eq., 0.8387313541
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	Yes
Product Repair Index Dam Doc	XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Bezel Material	dark grey plastic
Head Type	standard
Noise Level	90 dB 6.8 kHz 0.1 m +/- 10 %
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Repair Index	A
Range Of Product	Harmony XB5
Returnability	No
Software Version	EIME v5.6.0.1
Supply Frequency	50 Hz
Total Lifecycle Carbon Footprint	3 kg CO2 eq.
Supply Voltage 31 Supply Voltage	230...240 V
Data Source	extrapolated product
Width Nominal	29 mm
Nbr. Of Units In Pkg.	1
Product Repair Index Dam Document Id	XB4BS8442-ENVREPAIR-A-EN
Functional Unit Description	Provide the audio and visual(Optional) signaling for 10 years at 5% use rate.
Functional Unit Unit	unité (unit)
Recyclability Potential In %	13

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Cap Operator Or Lens Color	black
Carbon Footprint Of The Distribution Phase A4	0.0030965387, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0002934482, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	2 kg CO2 eq., 1.776888
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2502013EN
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Electrical Shock Protection Class	class II conforming to IEC 60536
Mounting Diameter	22 mm
Overvoltage Category	class II conforming to IEC 60536
Product Or Component Type	annunciator
Protective Treatment	TH
Resistance To High Pressure Washer	9000000 Pa 80 °C 0.1 m

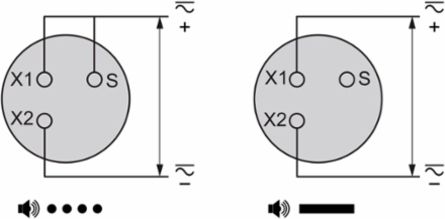

Signalling Type	continuous or intermittent tone
Supply Circuit Type	AC
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	CODDE-2016-11
Height Nominal	29 mm
Cap/Operator Or Lens Colour	black
Customs Code	8531809041
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	2.6227938161
Environmental Disclosure	ENVPEP2502013EN
Nema Degree Of Protection	UL type 4X/13
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2502013EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2502013EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-02-23
Psr Version	PSR-0005-ed2-EN-2016 03 29
