Schneider Electric XVUC9S Harmony XVU Modular Tower Light with Buzzer, 60mm, 24V AC/DC, IP54
- MPN: XVUC9S
- PPN: SCH-XVUC9S
CAD
$178.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

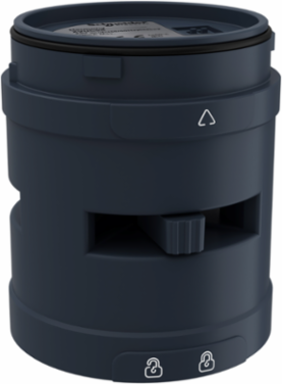

This indicating bank buzzer is an accessory designed as an audible and signalling unit. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. It fits for modular tower light for custom assembly. It has a continuous or intermittentt signal and its sound acoustic level is adjustable. It complies with CSA, UL, RoHS, CE standards and it has IP54 protection index.
Features
- Engineered with an adaptable tone configuration, this audible unit allows automation technicians to switch between a continuous or intermittent tone profile at a clear 2635 Hz sound frequency. This flexibility ensures your machine operator can instantly distinguish a critical emergency shutdown from a routine material-reload warning right on the factory floor.
- Delivering a powerful 85 dB acoustic output at a distance of 1 meter, this buzzer pierces through high ambient factory noise without causing ear fatigue. The adjustable volume control lets you fine-tune the decibel level to match the precise acoustic environment of your facility, ensuring vital equipment alarms are never missed in busy automotive, material handling, or machine tool applications.
- Designed as a native top-mounted component for the modular Harmony XVU 60mm tower light range, this black buzzer features simple, toolless twist-and-lock assembly. Integrated alignment marks allow field engineers and panel builders to stack the acoustic module directly onto LED light segments in seconds, accelerating custom signaling tower deployment and minimizing maintenance downtime.

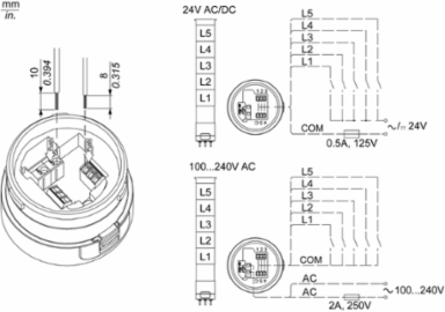

- Operating on a universal 24V AC/DC control voltage with a low current consumption of less than 70 mA, this unit hooks up natively to common industrial automation controllers and programmable logic controller (PLC) transistor cards. The low 1.7-watt power dissipation prevents control loop overloads, eliminating the need for external isolation relays and simplifying your overall enclosure cabinet footprin
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Chile, France, Indonesia, Singapore, United States |
|---|
Physical Attributes
| Housing Color | black |
|---|
Complementary Attributes
| Maximum Power Dissipation In W | 1.7 W |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Material | PBT (polybutylene terephthalate) V-0 UL 94, ABS (acrylonitrile butadiene-styrene) V-0 UL 94, PC (polycarbonate) V-0 UL 94 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.010068791586177291, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.079638334406525, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 17 kg CO2 eq., 17.255921803652964 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308032EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Acoustic Level | 85 dB 1 m |
| Beacon Or Indicator Bank Unit Type | buzzer unit |
| Current Consumption | <= 70 mA<= 70 mA |
| Mounting Diameter | 60 mm |
| Product Or Component Type | modular tower light |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Sustainable Packaging | Yes |
| Housing Color | black |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This Harmony XVU modular range of tower lights are 360° pilot lights and commonly used signaling product for a wide range of applications. These tower lights are visual and audible signaling units that comes with a combination of innovative features high& 10performance and simplicity.It has power consumption of 0.96 W with use rate of 73% for a period of 10 years and adhering to international UL standards and IP 65 degree of protection. |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 37.23 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |

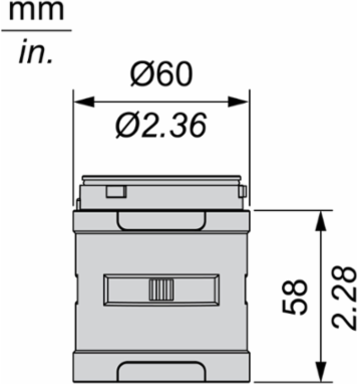

| Length Total | 58 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8531809041 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | UL, CE, CSA |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.06710324103884953 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.5 kg CO2 eq., 0.5061064606138655 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Assembly Style | customer assembly |
| Component Name | XVU |
| Localisation On Device | top |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony XVU |
| Signalling Type | continuous or intermittent buzzer |
| Sound Frequency | 2635 Hz |
| Total Lifecycle Carbon Footprint | 18 kg CO2 eq. |
| Pep Code | ENVPEP2308032EN |
| Pep Verification Date | 2025-02-23 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; ID |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 16 |
| [Us] Rated Supply Voltage | 24 V AC/DC |
| Package Weight(Lbs) | 172 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-50 °C, -25-50 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 17.91883863129838 |
| Environmental Disclosure | ENVPEP2308032EN |
| Ip Degree Of Protection | IP54 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2308032EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308032EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-02-23 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | modular tower light |
|---|
| Range Of Product | Harmony XVU |
|---|
ETIM
| ETIM 8 | EC001261 |
|---|
| ETIM 9 | EC001261 |
|---|
