Schneider Electric XVC4B15S Complete pre wired monolithic tower light, Harmony XVC, plastic, red, 40mm, tube mounting, steady or flashing, buzzer, IP23, 24V AC DC
Schneider Electric XVC4B15S Complete pre wired monolithic tower light, Harmony XVC, plastic, red, 40mm, tube mounting, steady or flashing, buzzer, IP23, 24V AC DC
- MPN: XVC4B15S
- PPN: SCH-XVC4B15S
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$301.54/ EA
Description

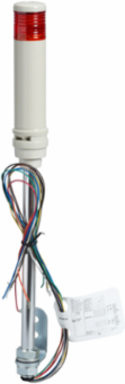

This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 40mm. It is supplied pre-assembled and pre-cabled with 1 illuminated signaling unit (red), a buzzer and a base mounted on a support tube with a bracket for mounting on horizontal (IP 54) or vertical surface (IP 23). Supply voltage is 24 V AC/DC. It is designed for long distance indication of the operating states of a machine, either visually by means of illuminated signaling units visible through 360° (super bright LED for steady or flashing light), or audibly by means of a buzzer. It is used mainly in the food-processing and medical sectors.
Specifications
Environment
- Product Certifications
- UL
- Standards
- IEC 61000-6-3 || IEC 61000-6-2
- Ambient Air Temperature For Storage
- -35-70 °C
- Electrical Shock Protection Class
- class I IEC 61140
Ambient Air Temperature For Operation-10-50 °C
Ip Degree Of ProtectionIP23 vertical surface installation IEC 60529
Overvoltage Categoryclass I IEC 61140
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1904008EN
- Circularity Profile
- ENVEOLI1904008EN
Mercury FreeYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- [Us] Rated Supply Voltage
- 24 V
- [Uimp] Rated Impulse Withstand Voltage
- 0.8 kV
- Flashing Frequency
- 1 Hz
- Marking
- CE
- Mounting Location
- on support tube, 17 mm
- Awg Gauge
- AWG 22
- Product Mounting
- on support tube, 17 mm
Height524.5 mm
Fundamental Frequency2.23 kHz
Cable Length900 mm
Net Weight0.6 kg
Current Consumption65 mA
Cable Cross Section0.33-0.33 mm²
Materialpolycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94HB): top cover || SGP (chromium-plated): support tube
Specifications
- Range Of Product
- Harmony XVC4
- Light Source
- LED steady or flashing red
- Component Name
- XVC
- Beacon Or Indicator Bank Unit Type
- 1 illuminated unit
- Sound Signalling
- buzzer
Mounting Diameter40 mm
Product Or Component Typecomplete pre-wired monolithic tower light
Noise Level70-85 dB continuous or intermittent tone)1 m
Supply Circuit TypeAC/DC
Device Short NameXVC
