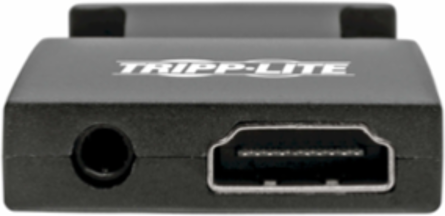

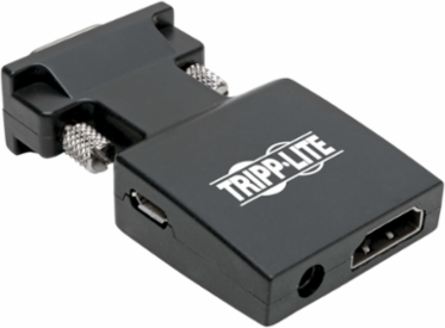

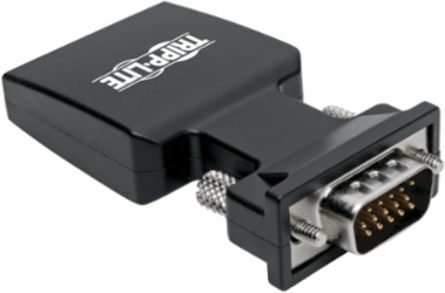

Tripp Lite P131-000-A-DISP HDMI to VGA Active Adapter Video Converter with Audio (F/M)
Tripp Lite P131-000-A-DISP HDMI to VGA Active Adapter Video Converter with Audio (F/M)
- MPN: P131-000-A-DISP
- UPC: 037332231208
- PPN: TRP-P131-000-A-DISP
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$24.75/ EA
Description
HDMI to VGA Active Adapter Video Converter with Audio (F/M)
Features
- Recommended for video presentations or streaming 1080p video for digital signage
- Delivers HD picture quality at resolutions up to 1920 x 1200 (1080p) @ 60 Hz

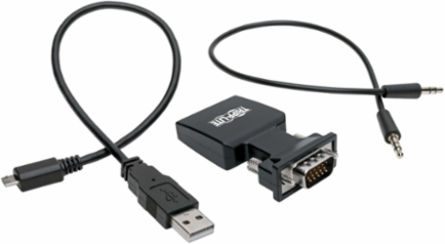

- Included 3.5 mm audio cable carries stereo sound to monitor, receiver or speakers
- Molded one-piece converter fits easily in your backpack or laptop bag
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty
- Now You Can Watch Video from Your HDMI Computer on a VGA Display
- Transmits Crystal-Clear 1080p Video and Stereo Audio
- Ready to Use Right Out of the Package
Specifications
Features & Specifications
- Max Supported Video Resolution
- 1920 x 1200 @ 60Hz
- HDCP Specification
- 1.4
- Driver Required
- No
- EDID Compatible
- Yes
HDMI Specification1.4b
Audio Specification2 Channel Audio
Max Supported Color Depth8-bit
TechnologyHDMI; Stereo Audio; VGA/SVGA
Certifications
- Certifications
- Tested to CE, FCC, REACH, RoHS2
Connections
- Ports
- 3
- Side B - Connector 1
- 3.5MM (FEMALE); HDMI (FEMALE); MICRO-USB B (FEMALE)
- Contact Plating
- Gold

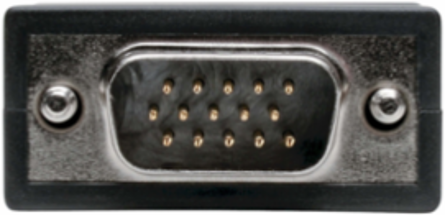

Side A - Connector 1HD15 (MALE)
Connector PlatingNickel
Physical
- Color
- Black
- Rackmountable
- No
- Unit Dimensions (hwd / in.)
- 1.33 x 2.46 x 0.37
Material of ConstructionABS
Shipping Dimensions (hwd / in.)9.00 x 7.00 x 0.50
Unit Weight (lbs.)0.10
User Interface, Alerts & Controls
- LED Indicators
- N/A
Input
- Cable Length (ft.)
- 0
- Bus Powered
- Yes
- Product Length (ft.)
- 0.20
Cable Length (in.)0
Product Length (in.)2.46
Environmental
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Relative Humidity
- 10% to 90% RH, Non-Condensing
Storage Temperature Range-4 to 140 F (-20 to 60 C)
Power Consumption (Watts)1.26
Overview
- UPC Code
- 037332231208
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
