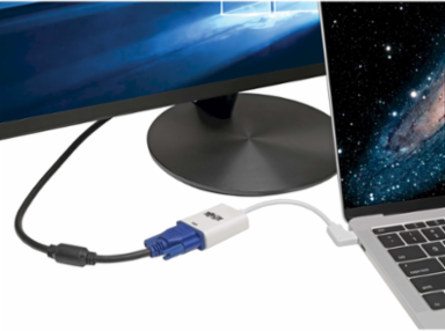

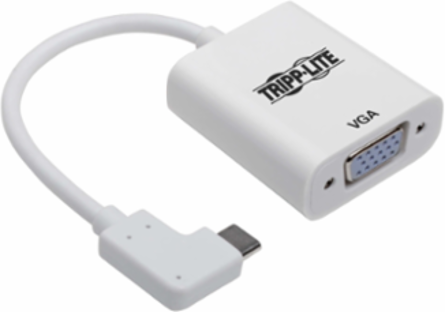

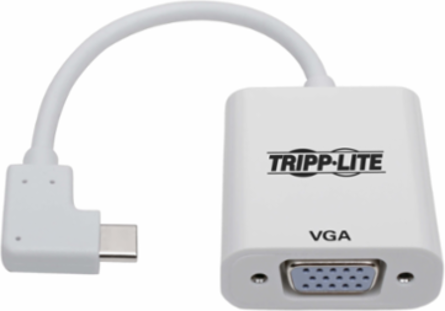

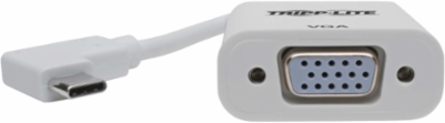

Tripp Lite U444-06N-VGA-RA USB-C to VGA Adapter, Right-Angle Plug, 6 Inch, 1080p @ 60 Hz
- MPN: U444-06N-VGA-RA
- UPC: 037332214195
- PPN: TRP-U444-06N-VGA-RA
CAD
$17.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C to VGA Adapter, Right-Angle Plug, 6 Inch, 1080p @ 60 Hz
Features
- Transmits video signals from sources supporting USB DisplayPort Alt Mode
- Delivers HD picture quality at resolutions up to 1920 x 1200 (1080p) @ 60 Hz
- Supports USB 3.1 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
- Right-angle USB-C plug allows easier connection in confined or hard-to-reach spaces
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty
- Right-Angle USB-C to VGA Adapter Connects to Your Laptop’s USB-C or Thunderbolt 3 Port
- Supports USB-C DisplayPort Alternate Mode for Transmitting Video Signals
- Transmits Crystal-Clear 1080p Video to a VGA Display
- Reversible USB-C Connector Attaches in Either Direction
- Right-Angle USB-C Plug Makes Connecting in Tight Spaces Easier
- Ready to Use Right from the Package, So You Can Plug and Play Immediately
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | 1920 x 1200 (1080p) @60Hz |
|---|---|
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Max Supported Color Depth | 24-bit True Color |
| Displayport Specification | 1.2 |
|---|---|
| Driver Required | No |
| Technology | USB; USB 3.1 (Gen 1); VGA/SVGA |
Battery
| Battery Charging (1.2 Port) | No |
|---|
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Side A - Connector 1 | USB C (MALE) - RIGHT ANGLE |
|---|---|
| Connector Plating | Nickel |
| Side B - Connector 1 | HD15 (FEMALE) |
|---|
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | PVC and ABS |
| Unit Dimensions (hwd / in.) | 0.6 x 1.6 x 1.5 |
| Color | White |
|---|---|
| Shipping Dimensions (hwd / in.) | 0.85 x 4.00 x 4.80 |
| Unit Packaging Type | Box |
User Interface, Alerts & Controls
| LED Indicators | N/A |
|---|
Input
| Bus Powered | Yes |
|---|---|
| Product Length (cm.) | 15.2 |
| Product Length (m.) | 0.2 |
| Product Length (in.) | 6 |
|---|---|
| Product Length (ft.) | 0.5 |
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| BTUs | 2.9 BTU/Hr |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
|---|---|
| Power Consumption (Watts) | 0.85 |
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
Overview
| UPC Code | 037332214195 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
