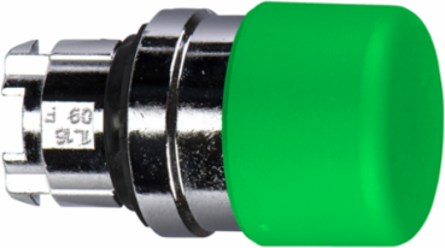

Schneider Electric ZB4BC34 Harmony XB4 Green Mushroom Push Button Head 30 mm, IP66, Spring Return
Schneider Electric ZB4BC34 Harmony XB4 Green Mushroom Push Button Head 30 mm, IP66, Spring Return
- MPN: ZB4BC34
- PPN: SCH-ZB4BC34
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$31.29/ EA
Description
This Harmony XB4, 30mm mushroom green button head operates with a spring return / impulse mechanism. This 30mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 30mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.
Specifications
Environment
- Product Certifications
- CSA || BV || LROS (Lloyds register of shipping) || UL listed || DNV || GL
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69 || IP69K
- Overvoltage Category
- class I IEC 60536
- Protective Treatment
- TH
Ik Degree Of ProtectionIK06 conforming to IEC 50102
StandardsEN/IEC 60947-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Composition Code
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Device Presentation
- basic element
- Cad Overall Width
- 30 mm
Cad Overall Height30 mm
Mechanical Durability5000000 cycles
Cad Overall Depth52 mm
Specifications
- Range Of Product
- Harmony XB4
- Type Of Operator
- spring return
- Shape Of Signaling Unit Head
- round
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- green mushroom Ø 30 mm, unmarked
Mounting Diameter22 mm
Product Or Component Typehead for non-illuminated push-button
Head Typestandard
Bezel Materialchromium plated metal
Device Short NameZB4
