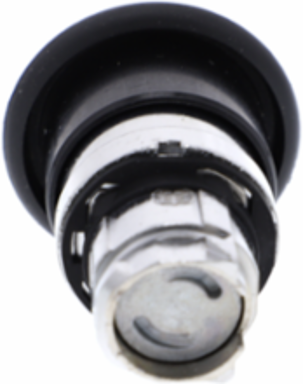

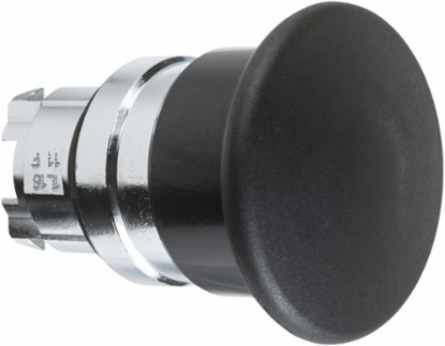

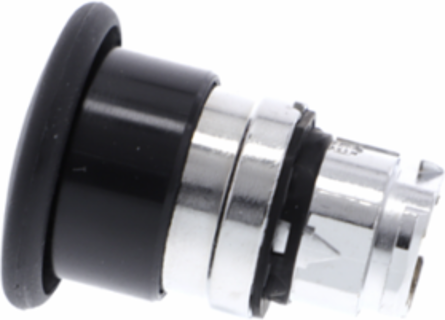

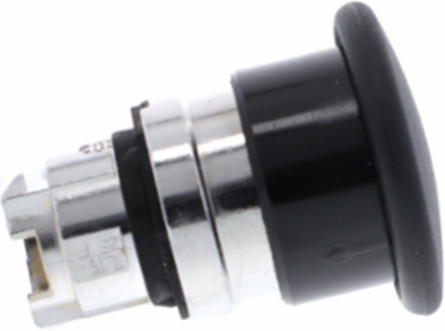

Schneider Electric ZB4BC2 Harmony XB4 40mm Black Mushroom Pushbutton Head, Metal, IP66/IP69K, 22mm Cutout
- MPN: ZB4BC2
- PPN: SCH-ZB4BC2
CAD
$31.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB4, 40mm mushroom black button head operates with a spring return mechanism. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- Featuring a prominent 40mm diameter mushroom head, this operator profile provides an expanded surface area that ensures maximum ergonomics for quick, blind tactile activation. The large black cap is easily distinguishable at a distance on busy control panels, allowing plant operators to execute vital process adjustments or machine cycles quickly without fumbling.
- Built for demanding industrial lifecycles, the momentary spring return mechanism is rated for an exceptional 5,000,000 mechanical cycles of trouble-free operation. This heavy-duty construction eliminates frequent downtime and costly maintenance interventions on high-repetition assembly lines, material handling systems, and automated machinery.
- Constructed with a premium chromium-plated metal bezel, this head assembly offers superior impact and vibration resistance rated up to 5gn (vibration) and 50gn (shock). Unlike vulnerable plastic alternatives, its robust metallic design resists physical distortion, chemical degradation, and industrial wear, keeping your critical automation controls operational under severe mechanical stress.
- Featuring a specialized TH protective treatment, this non-illuminated push-button head maintains precise mechanical clearance and responsiveness across an ultra-wide temperature window from -40 C to 70 C (-40 F to 158 F). This extreme thermal tolerance ensures flawless control signaling in outdoor oilfield equipment, commercial refrigeration units, and high-heat foundry applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia, France, United States |
|---|

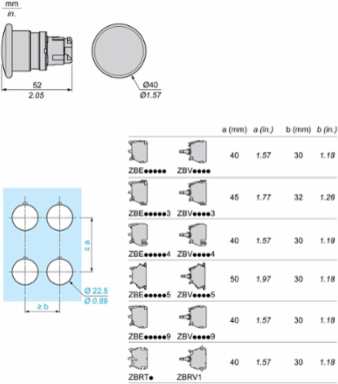

Physical Attributes
| Cad Overall Depth | 52 mm |
|---|---|
| Cad Overall Width | 40 mm |
| Cad Overall Height | 40 mm |
|---|---|
| Cap Operator Or Lens Color | black |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Bezel Material | chromium plated metal, chromium plated metal |
| Operator Profile 1 Operator Profile | mushroom Ø 40 mm, mushroom Ø 40 mm |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0099386002, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.015243274, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | ZB4 |
| Gcr Bridge | ZB4BCCUST01 |
| Head Type | standard |
| Marking | unmarked |
| Mounting Diameter | 22 mm |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TH |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.7 kg CO2 eq. |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| X C Cap Or Lens Color | black |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| Cap/Operator Or Lens Colour | black |
| Package Weight(Lbs) | 76.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Operator Profile | black , unmarked, mushroom Ø 40 mm, mushroom Ø 40 mm |
| Certificate Agency | BV, CSA, DNV, LROS (Lloyds register of shipping), UL Listed |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.0961314353 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.5 kg CO2 eq., 0.5386894425 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308035EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | ZB4 |
| Electrical Composition Code | C1 9 single front mountingC2 9 single and double front mountingC11 3 single front mountingC15 1 single front mounting |
| Group Of Product | mush. spring return non illum. |
| Main Group | mushroom head |
| Mechanical Durability | 5000000 cycles |
| Overvoltage Category | class I conforming to IEC 60536 |
| Product Or Component Type | head for non-illuminated push-button |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Type Of Operator | spring return |
| Cap Operator Or Lens Color | black |
| Pep Code | ENVPEP2308035EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 84 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP69, IP69K |
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.6600027521 |
| Environmental Disclosure | ENVPEP2308035EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2308035EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | UL type 4X/13, NEMA 13, NEMA 4X |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308035EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | head for non-illuminated push-button |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC001038 |
|---|
| ETIM 9 | EC001038 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | basic element |
|---|
