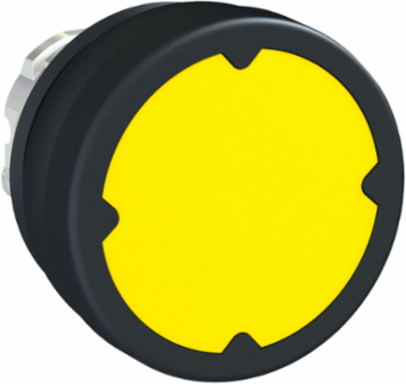

Schneider Electric ZB4BC580 Harmony XB4 Yellow Pushbutton Head, IP66, 22 mm, 10 Million Cycles
Schneider Electric ZB4BC580 Harmony XB4 Yellow Pushbutton Head, IP66, 22 mm, 10 Million Cycles
- MPN: ZB4BC580
- PPN: SCH-ZB4BC580
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$75.17/ EA
Description
This Harmony XB4, flush yellow button head operates with a spring return / impulse mechanism, is used in harsh environment. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Specifications
Environment
- Product Certifications
- CE || CSA || UL
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 || UL 508
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69K || IP67 || IP69
Ik Degree Of ProtectionIK06 conforming to IEC 62262
Ambient Air Temperature For Storage-40-85 °C
Nema Degree Of ProtectionNEMA 4 UL 508 || NEMA 13 || NEMA 12
Resistance To High Pressure Washer90 Pa 82.5 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Cap/Operator Or Lens Colour
- yellow
- Main Group
- harsh environment
- Mechanical Durability
- 10000000 cycles
- Type Of Operator
- spring return
- Electrical Shock Protection Class
- class I IEC 61140
- Shape Of Signaling Unit Head
- round
- Cad Overall Width
- 37 mm
- Net Weight
- 0.036 kg
- Group Of Product
- flush unmarked
Operator Additional Informationvertical mounting || horizontal mounting
Operator Profileyellow flush, unmarked
Markingunmarked
Electrical Composition CodeC1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Cad Overall Depth37 mm
Cad Overall Height18.5 mm
Device Presentationbasic element
Specifications
- Sale Per Indivisible Quantity
- 1
- Bezel Material
- chromium plated metal
- Product Or Component Type
- head for push-button
- Head Type
- standard
Range Of ProductHarmony XB4
Mounting Diameter22 mm
Device Short NameZB4
