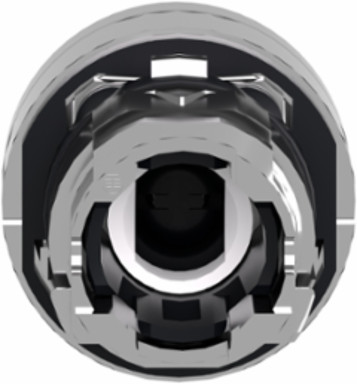

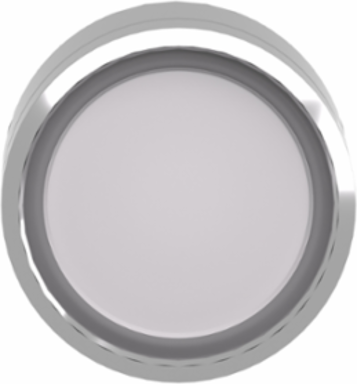

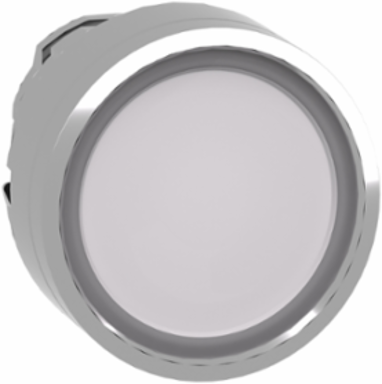

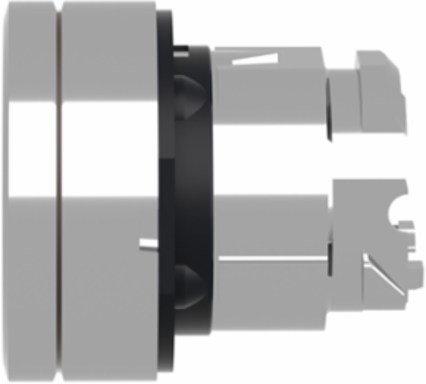

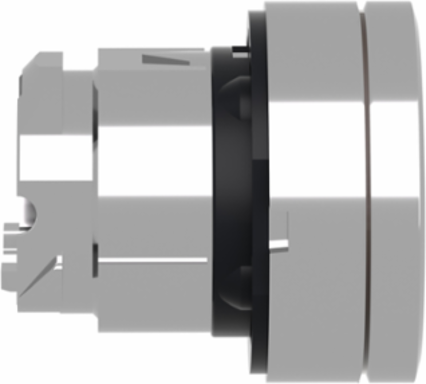

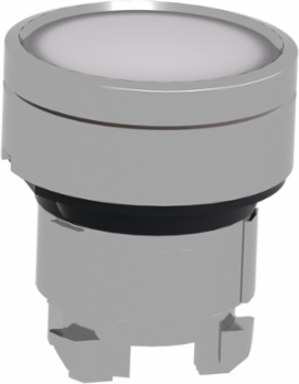

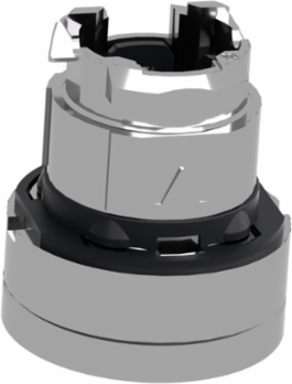

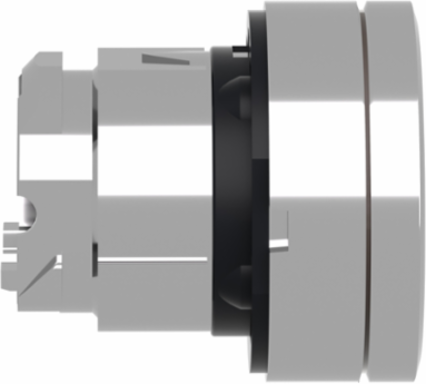

Schneider Electric ZB4BA18 Harmony XB4 22mm Illuminated Push Button Head, IP66, Spring Return, Metal

MPN: ZB4BA18
PPN: SCH-ZB4BA18

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$22.62

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XB4, plain lens flush white button head with transparent cap is used for insertion of legend, operates with a spring return / impulse mechanism. This button head with transparent cap provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly and used for insertion of legend. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, United States

Physical Attributes

Cad Overall Depth	30 mm
Cad Overall Width	29 mm

Cad Overall Height	29 mm
Cap Operator Or Lens Color	white

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Bezel Material	chromium plated metal, chromium plated metal
Electrical Composition Code	M1 6 single front mounting integral LEDM2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, C3 6 single front mounting, C4 6 single and double front mounting, C14 2 single front mounting
Certificate Agency	BV, CSA, DNV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.0376303974
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.2 kg CO2 eq., 0.2108685647
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	14 %
Device Short Name	ZB4
Head Type	standard
Main Group	illum push-button
Mechanical Durability	10000000 cycles
Operator Additional Information	for insertion of legend
Overvoltage Category	class I conforming to IEC 60536
Product Or Component Type	head for illuminated push-button
Range Of Product	Harmony XB4
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.3 kg CO2 eq.
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Operator Add Information	for insertion of legend
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Cap/Operator Or Lens Colour	white
Package Weight(Lbs)	31.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Customizable	0, no
X C Product	flush push with inser of legend
Carbon Footprint Of The Distribution Phase [A4]	0.0038904389, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0059669395, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Stocking Flag	Y
Weee Applicability	Component
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308035EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	21 %
Compatibility Code	ZB4
Group Of Product	flush push with inser of legend
Important Message	A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Marking	unmarked
Mounting Diameter	22.5 mm
Operator Profile	white flush, unmarked
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	No
Type Of Operator	spring return
Cap Operator Or Lens Color	white
Pep Code	ENVPEP2308035EN
Pep Verification Date	2024-01-05
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	84
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP67, IP69, IP69K
Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2308035EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-01-05
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	UL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level	21 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.2583563405
Environmental Disclosure	ENVPEP2308035EN
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	universal LED
Pep Code	ENVPEP2308035EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
