PMA VOHG-17B.30 Heavy Duty Conduit
PMA VOHG-17B.30 Heavy Duty Conduit
- MPN: VOHG-17B.30
- PPN: T-B-VOHG-17B.30
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$411.48/ EA
Description

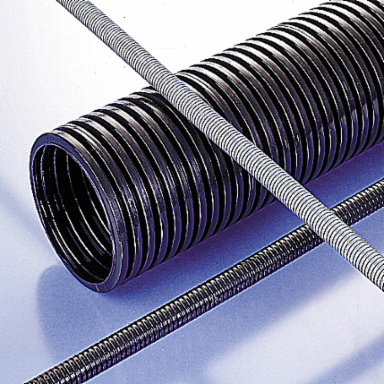

Coarse Profile Very Heavy Wall Pliable Black Conduit, (VOH) Material - Polyamide 6, Conduit Size NW - 17, 30 Meters
Features
- Robust construction
- High degree of mechanical protection
- Outstanding pull-out resistance
- Self-extinguishing
- Free from halogens and cadmium
- Renewable Energy
- Exterior machine connections, for heavy machine equipment
Specifications
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Outer diameter
- 21mm
- Material
- Polyamide 6
- Operating temperature
- -40 - +105°C
- UV resistant
- Y
- Sheathing material
- Not sheathed
- Lengthwise slotted
- N
- Halogen free
- Y
- Approved according to UR
- N
- Approved according to LUL/British Standard
- N
- Approved according to UTAC
- N
- Approved according to NF F 16-101
- N
Nominal diameter20mm
Inner diameter14.5mm
Compressive strength600N
Fire resistance in accordance with UL94V0
ColourBlack
Bending strengthFlexible
Closable (two-part)N
Approved according to DIN EN 61386-23N
Approved according to CSAN
Approved according to Lloyd's Register TAN
Approved according to DIN 5510N
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- PMA
- Application
- Machine
- Outside Diameter
- 0.83 Inch
- Flexibility
- Pliable
- Color
- Black
IGCC5535 Electrical conduit
TypeHeavy Duty Conduit
Trade SizeNW17
Length30 m
MaterialPolyamide/Nylon 6
Packaging
- Inner Quantity
- 1
- Outer Dimensions (inches)
- 47.244x31.496x30.709
Outer Quantity20
Weight Uom0.09 lbs. Each
