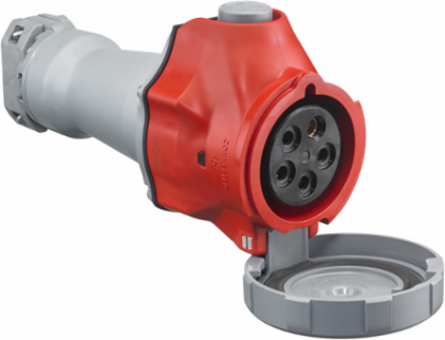

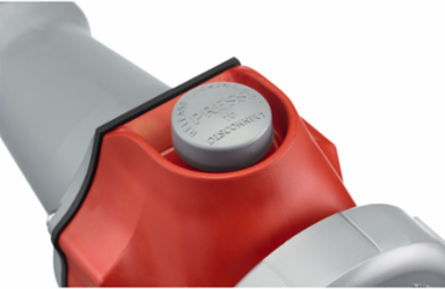

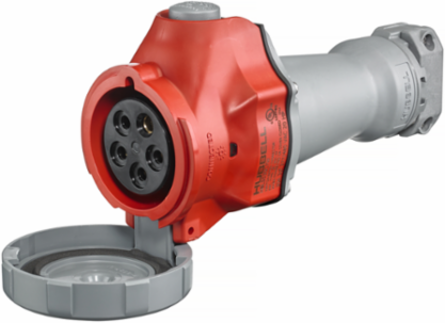

Hubbell Wiring Device-Kellems HBLS560C6W IEC Pin and Sleeve Switched Connector, 60A, 4-Pole, 200-415VAC, NEMA 4X

IEC Pin and Sleeve Switched Connector, 60A, 4-Pole, 200-415VAC, NEMA 4X - https://media.province-electric.com/325/synd_hubbell/medium/a8ae485a27b77ec2a6b0f168e382cfbfc522e075-medium.png

IEC Pin and Sleeve Switched Connector, 60A, 4-Pole, 200-415VAC, NEMA 4X - https://media.province-electric.com/325/synd_hubbell/medium/2df1473b1a87be369dee7f5984a1a8da4d1a3b99-medium.png

IEC Pin and Sleeve Switched Connector, 60A, 4-Pole, 200-415VAC, NEMA 4X - https://media.province-electric.com/325/synd_hubbell/medium/3327873f692ef3b3cef45e78cbe42a4a28546999-medium.png

IEC Pin and Sleeve Switched Connector, 60A, 4-Pole, 200-415VAC, NEMA 4X

MPN: HBLS560C6W
UPC: 783585478678
PPN: HBL-HBLS560C6W
UNSPSC: 39121404

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1408.22/ EA

Qty:

Loading add to cart quantity...

Description

Heavy Duty IEC Pin and Sleeve, Connector, Switched, 200-415V AC, 4-Pole 5-Wire Grounding, NEMA 4X/IP69K

Features

Mates with existing installed base of IEC 60309-2 pin and sleeve devices
Approved as a diconnecting means for motor circuits and branch circuits
UL Type 4X, 12 and IP69k environmental ratings
Impact and corrosion-resistant PBT that is color coded by voltage
Unswitched ground and power indicating LED lights

Specifications

Country of Origin: United States

Width: 5.600 in

Color: Red

Number of Wires: 5-Wire

Voltage Rating: 200/346-240/415 VAC

Engineering Drawing 1 Display Text: HBLS560C6W AutoCAD Drawing

General Literature Asset 2 Display Text: Advantage™ Series Switch-Rated IEC Pin & Sleeve Devices

Number Of Poles: 4-Pole

Style: IP69k NEMA 4X

Description - Invoice: PS, SW CONN, 4P5W,60/63A 200-415V,4X/69K

Harmonization Code: 8536694020

MSDS Flag: No

Series: Advantage® Series

Carton - SCC-14 Next Lower Level Sub Pack: 00783585478678

Current / Amperage Rating60/63 A

Amperage Rating60/63 A

Number of Poles4-Pole

TypeWatertight Connector

Voltage Rating Description200/346-240/415 VAC

General Literature Asset 1 Display TextIEC Pin & Sleeve Devices

General Literature Asset 3 Display TextPulp & Paper Solutions

Number Of Wires5-Wire

Class CodeA12

Freight Class Code06168002

Image Actual Or RepresentativeA

Sub Class CodeA12A180

Base Unit of MeasureEA

Certifications

EU RoHS Indicator: Contact Manufacturer
