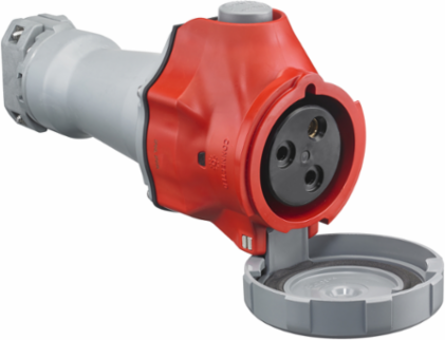

Hubbell Wiring Device-Kellems HBLS330C7W IEC Watertight 30A 480V Switched Female Connector, 2-Pole 3-Wire
- MPN: HBLS330C7W
- UPC: 783585550367
- PPN: HBL-HBLS330C7W
- UNSPSC: 39121402
CAD
$770.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty IEC Pin and Sleeve Switched, IEC 309,Female Connector, 30A 480V, 2-Pole 3-Wire Grounding, NEMA 4X/IP67,Watertight
Features
- Mates with existing installed base of IEC 60309-2 pin and sleeve devices
- Approved as a disconnecting means for motor circuits and branch circuits
- UL Type 4X, 12 and IP69k environmental ratings
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 4.810 in
- Color
- Red
- Number of Wires
- 3-Wire
- Voltage Rating
- 480 VAC
- Engineering Drawing 1 Display Text
- HBLS330C7W AutoCAD Drawing
- General Literature Asset 2 Display Text
- Advantage™ Series Switch-Rated IEC Pin & Sleeve Devices
- Number Of Poles
- 2-Pole
- Style
- IP69k NEMA 4X
- Description - Invoice
- PS, IEC, SW CONN, 2P3W, 30A 480V, WT
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Series
- Advantage® Series
- BOX SIZE
- 10.745x23.125x10.745 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585550367
- NAICS Code
- 335931A104
Current / Amperage Rating30 A
Amperage Rating30 A
Number of Poles2-Pole
TypeWatertight Connector
Voltage Rating Description480 VAC
General Literature Asset 1 Display TextIEC Pin & Sleeve Devices
General Literature Asset 3 Display TextPulp & Paper Solutions
Number Of Wires3-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
Base Unit of MeasureEA
Carton - Gross Weight per Pack24.350 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
